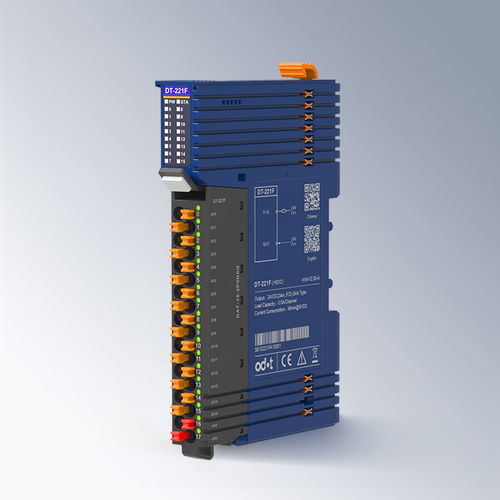

Digital output module DT-221F

16-channel16 digital outputscurrent

16 Channels digital output module 24VDC/NPN/low level is valid Module Features - The module supports 16 channels digital output, the output low level is valid and the output voltage is 0V. - The module carries 16 digital output channel LED indicators. - The module has the function of thermal shutdown and over current protection. - Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters General Parameters - Current Consumption: 48mA@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Wirring Diameter: Min.0.2mm²(AWG24), Max.1.5mm²(AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Input parameters - Channel number: 16 channels output - Indicator: 16 channel indicators - Output Type: Transistor output, NPN - Load capacity: 12W (0.5A)/ each channel - Output Current of Module: Max.8A - Load Resistance: Min.48 Ω - Output Delay: OFF to ON: Max.100μs, ON to OFF: Max.200μs - Output voltage: 0V - Residual Current: <8 μA - Switching Frequency: Resistive load: Max.100Hz, Inductive load: Max.2Hz - Module Fault Handling: Output fault value or hold last output value can be configured - Protection Function: Overcurrent protection, protection current: 0.7~1.4A Environment parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Performance level A; Air discharge ±8kV, Performance level A; SURGE: Common mode ±2kV, Performance level A; EFT: ±2kV, Performance level A)
