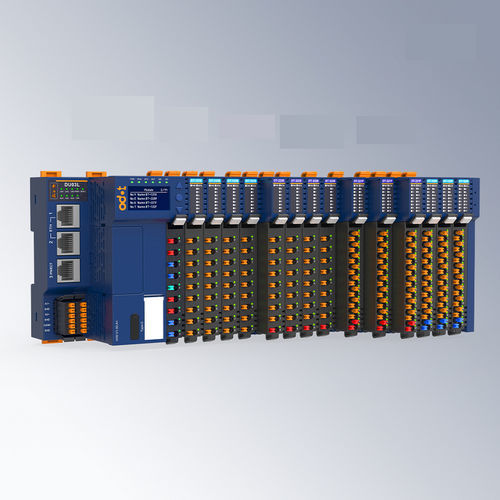

Analog output module DT-4168

8-channel8 analog outputscurrent

Product Overview: 8 Channels voltage output module supporting 0~5VDC/0~10VDC/±5VDC/±10VDC, 16 bits resolution. Module Features: - 0-20mA or 4-20mA output range can be set. - The module internal bus and field output adopts capacitive isolation. - Module output signal is a single-end common ground output. - Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters: General Parameters - Current Consumption: 35mA@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Wirring Diameter: Min.0.2mm²(AWG24), Max.1.5mm²(AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Output Parameters - Channel Number: 8 channels current output - Resolution: 16 bits - Output Range: 0~20mA/4~20mA - Transition Time: 1ms/4 channels (the filter level is 0) - Input Impedance: Max.500Ω - Linearity Error: ≤±0.03% - Temperature Error: ≤±0.005%/K - Repeatability: ≤±0.05% - Measurement Error: ±0.2% (@25℃), ±0.4% (@-35℃~60℃) - Diagnosis: 24V power fault: support, Line fault: support, DAC communication fault: support Environment parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Performance level A; Air discharge ±8kV, Performance level A; SURGE: Common mode ±2kV, Performance level A; EFT: ±2kV, Performance level A) Key Specifications: - 8 analog voltage output channels - Output range: 0~5VDC/0~10VDC/±5VDC/±10VDC - Resolution: 16 bits - Current consumption: 35mA@5VDC - Field power: 19.2~28.8VDC (Nominal: 24VDC) - DIN-rail mounting, dimensions: 119*14*80mm - CE certified - Operating temperature: -35℃~60℃ (horizontal), -35℃~50℃ (vertical) - Protection grade: IP20
