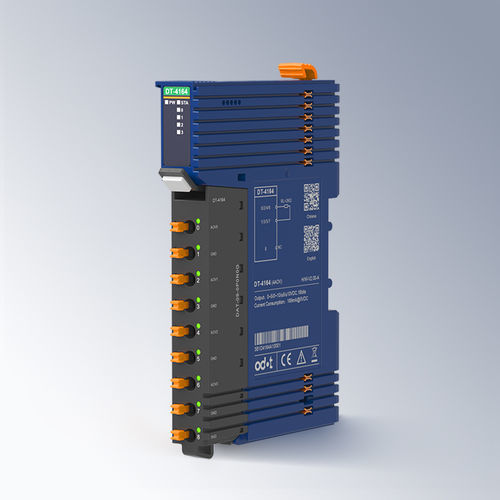

Analog output module DT-4164

4-channel4 analog outputscurrent

Product Overview: - 4 Channels voltage output module supporting 0~5VDC, 0~10VDC, ±5VDC, ±10VDC, 16 bits resolution. Module Features: - The module supports 4 channels voltage signal output - Output range: 0~5VDC, 0~10VDC, ±5VDC, ±10VDC, 16 bits resolution - The module carries 4 analog output LED indicators - Module output signal is a single-end common ground output - Module high speed redundant backplane bus with pluggable terminal blocks Technical Parameters: General Parameters - Current Consumption: 169mA@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Wirring Diameter: Min.0.2mm² (AWG24), Max.1.5mm² (AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Input Parameters - Channel Number: 4 channels voltage output - Resolution: 16 bits - Output Range: 0~5V/0~10V/ -5V~5V/ -10V~10V - Transition Time: 1.5ms/4 channels - Short-circuit Current: 15mA - Linearity Error: ≤±0.03% - Temperature Error: ≤±0.005%/°C - Repeatability: ≤±0.05% - Measurement Error: ±0.2% (@25°C), ±0.4% (@-35°C~60°C) - Diagnosis Function: DAC overheating fault: Support Environment parameters - Horizontal Installation Operating Temperature: -35°C~60°C - Vertical Installation Operating Temperature: -35°C~50°C - Storage Temperature: -40°C~85°C - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: II - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Performance level A; Air discharge ±8kV, Performance level A; SURGE: Common mode ±2kV, Performance level A; EFT: ±2kV, Performance level A) Key Specifications / Features: - 4 voltage output channels - Output range: 0~5VDC, 0~10VDC, ±5VDC, ±10VDC - 16-bit resolution - LED indicators for each output - Single-end common ground output - High-speed redundant backplane bus - Pluggable terminal blocks - CE certified - DIN-rail mountable - Operating temperature: -35°C to 60°C (horizontal), -35°C to 50°C (vertical) - Protection grade: IP20
