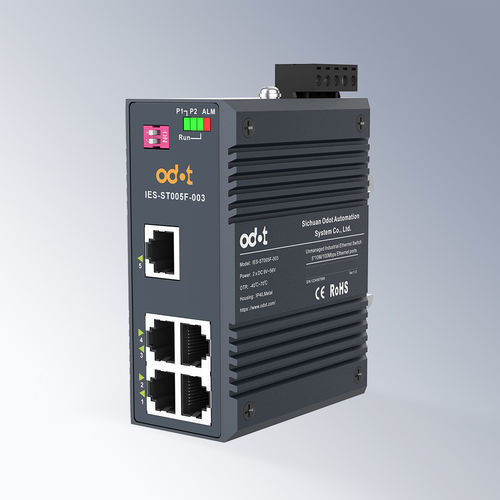

Unmanaged switch IES-ST005F-003

5 portsfast ethernetDIN rail

Product description
The IES-ST005F-003 industrial unmanaged Fast Ethernet switch from ODOT is a compact device for industrial automation and IIoT networks. It provides 5 × 10/100 Mbps RJ45 ports for stable field-level and control-layer communications. Designed for harsh environments, the switch offers wide operating temperature range, EMI and vibration resistance, anti-salt spray capability and redundant dual DC inputs (9 V~56 V) with reverse-connection protection. Suitable for network aggregation or device-access deployment in industrial sites.

Product characteristics

• Supports up to 5 × 10/100 Mbps electrical (RJ45) ports
• 1 Mbit switching buffer to support high-bandwidth transmission (e.g., 4K video)
• Supports IEEE 802.3 / 802.3u / 802.3x storage & forwarding and IEEE 802.3ah
• Large backplane bandwidth and buffer to ensure wire-speed forwarding on all ports
• Redundant dual DC power inputs (9 V ~ 56 V) with anti-reverse protection
• Wide operating temperature: -40 °C ~ +70 °C
• IP40 metal housing, fanless and low-power design
• Shock-resistant DIN-rail / wall mounting; plug-and-play installation

Technical parameters
Interface Parameter:
Hundred Meg Electrical Port: 5 RJ45 ports, 10/100 Mbps adaptive
Power Interface: 5-pin 5.08 mm pitch terminal block

Switch Properties:
Protocol Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ah
Cache Size: 1 Mbit
Forward Frame Length: 2048 Bytes
MAC Address Table: 2K entries
Forwarding Method: Store-and-forward (full-duplex / half-duplex)
Delay: < 7 µs
Backplane Bandwidth: 1 Gbps
Package Forwarding Rate: 0.74 Mpps

Indicator:
Power Indicator: PWR
Port State Indicator: Electric port LNK & ACT (1~5)

Power Specifications:
Operating Voltage: 9 V ~ 56 V DC
Power Consumption: < 5 W

Mechanical Structure:
Protection Level: IP40
Installation: DIN rail / wall mounted
Size: 101 mm × 80 mm × 43 mm (L × W × H)
Weight: 380 g

Environmental Parameter:
Operating Temperature: -40 °C ~ 70 °C
Storage Temperature: -40 °C ~ 85 °C
Relative Humidity: 5% RH ~ 95% RH (no condensation)
MTBF: 300,000 hours

EMC Performance:
Anti-Static Discharge (ESD): Contact discharge ±8 kV (performance class B); Air discharge ±15 kV (performance class A); standard IEC 61000-4-2
Anti-Radio Frequency Interference (RS): Standard IEC 61000-4-3
Anti-Fast Transient (EFT): Power port 2.5 kV (performance B); Signal port 2.5 kV (performance A); standard IEC 61000-4-4
Surge: Common mode/differential mode specifications up to specified kV levels with corresponding performance classes; standard IEC 61000-4-5
Conducted Interference (CS): Standard IEC 61000-4-6
