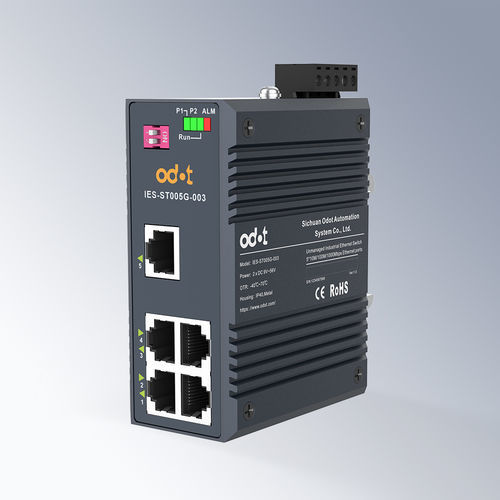

Unmanaged switch IES-ST005G-003

5 portsgigabit EthernetDIN rail

Product overview
The ODOT IES-ST005G-003 is an unmanaged industrial Gigabit Ethernet switch with five electrical RJ45 ports. Designed for industrial automation and Industrial IoT, it features redundant dual DC power inputs (9 V–56 V), wide operating temperature range, IP40 metal housing and DIN-rail or wall mounting for compact installation in control cabinets.

Key features

• 5 x 10/100/1000 Mbps electrical RJ45 ports (auto-negotiation)
• Unmanaged plug-and-play operation
• 1 Mbit switching cache to support high-bandwidth video and data flows
• Supports IEEE 802.3/802.3u/802.3x and related Ethernet standards
• Large backplane bandwidth (10 Gbps) and line-rate forwarding
• Redundant DC input 9–56 V with anti-reverse protection
• Wide temperature operation: -40 °C to +70 °C
• IP40 protection, metal fanless housing, low power consumption <3 W
• DIN-rail or wall mounting for industrial enclosures

Technical specifications

• Interfaces: 5 x RJ45 (10/100/1000 Mbps), power via 5-pin 5.08 mm terminal block
• Switch properties: Protocols IEEE 802.3/802.3u/802.3x/802.3az/802.3ah; Cache 1 Mbit; Forward frame length 9K bytes; MAC table 2K; Forwarding method store-and-forward; Backplane bandwidth 10 Gbps; Packet forwarding rate 7.44 Mpps; Latency < 7 μs
• Indicators: PWR; per-port LNK & ACT (1–5)
• Power: Operating voltage 9–56 V DC; Power consumption < 3 W
• Mechanical: Protection IP40; Metal, fanless housing; Size 120 × 90 × 35 mm; Weight ≈ 385 g; Mounting DIN-rail / wall
• Environmental: Operating temperature -40 °C to +70 °C; Storage -40 °C to +85 °C; Relative humidity 5%–95% (no condensation); MTBF ≈ 300,000 hours
• EMC: Meets IEC 61000 series for ESD, RS, EFT, Surge, CS (details in datasheet)

Typical applications

• Industrial control and factory automation
• Road traffic and intelligent transportation systems
• Building automation and security networks
• Mining, oilfield and hydropower control systems
• Power system monitoring and substation communications
• Data center edge monitoring and Industrial IoT deployments
