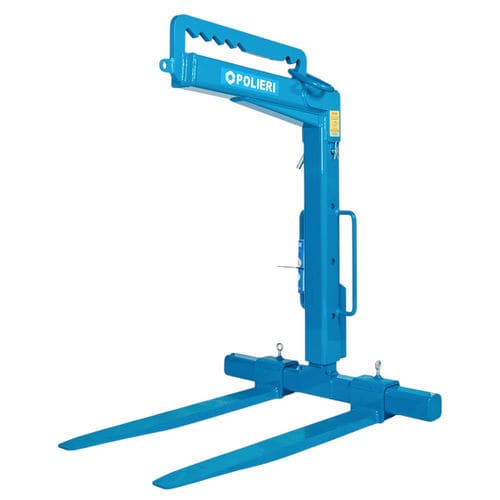

Adjustable pallet fork FRC/T series

telescopicfor palletfor cranes

Overview
The telescopic fork provides a versatile solution for lifting and handling pallets of varying sizes. Key features include a height-adjustable telescopic system, manual balancing via a sliding ring, and adjustable tines for maximum adaptability.

Height-Adjustable Telescopic System
Allows lifting pallets of different heights, increasing operational flexibility, particularly when used with truck-mounted cranes.

Manual Balancing with Sliding Ring
The sliding ring enables the operator to manually adjust the fork's balance according to the load, providing direct and precise control during lifting operations.

Adjustable Tines
Tines are adjustable to match the width of the load, making the fork suitable for materials of various sizes and shapes.

Construction
Constructed from high-strength steel with welded components to ensure structural integrity and consistent performance under heavy-duty use.

Ease of Use
Handles are positioned for straightforward insertion and removal from pallets. Designed for use with truck-mounted cranes. All forks comply with EN13155 and are equipped with two welded perforated plates for installation of a safety mesh.

Painting
Units are finished with an epoxy-polyester thermosetting powder coating for improved gloss and resistance to atmospheric agents, applied in accordance with environmental standards.

Technical specifications (table)
Model | FRC/T/15 | FRC/T/20
Load capacity (kg) | 1500 | 2000
Tare weight (kg) | 160 | 175
P (mm) | 1000 | 1000
AxS (mm) | 90×30 | 100×35
H (mm) | 1000 – 1650 | 1000 – 1650
L (mm) | 380 – 1000 | 380 – 1000

Characteristics / technical specifications

• Models: FRC/T series (FRC/T/15, FRC/T/20)
• Load capacity: 1500 kg (FRC/T/15), 2000 kg (FRC/T/20)
• Tare weight: 160 kg (FRC/T/15), 175 kg (FRC/T/20)
• Telescopic stroke P: 1000 mm
• AxS (tine section): 90×30 mm (FRC/T/15), 100×35 mm (FRC/T/20)
• Height H: 1000 – 1650 mm
• Length L: 380 – 1000 mm
• Manual balancing via sliding ring
• Adjustable tines to fit load width
• Designed for truck-mounted crane use
• Compliance: EN13155
• Finish: epoxy-polyester thermosetting powder coating
