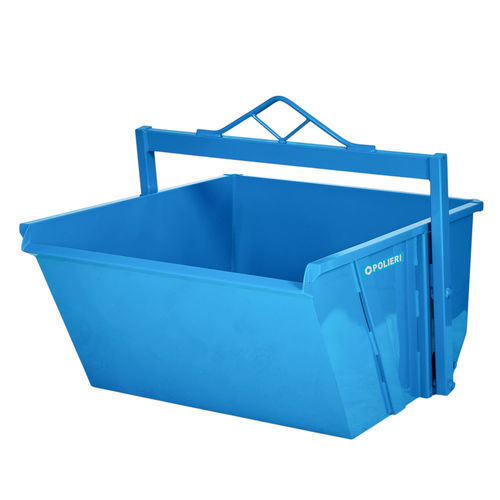

High-tip bucket 200

for excavatorstilting

Overview
The self-unloading crane bucket is designed for quick, tool-free discharge using an innovative tilting arc mechanism with two side-mounted lock–unlock levers. To discharge, tilt the lifting arc backward and pull it upward; the bucket then tips to release material. Reversing the movement returns the bucket to horizontal position for safe lifting and refilling.

Use and compliance
Suitable for handling construction materials such as sand, gravel, rubble and waste. Manufactured in compliance with EN13155 to meet European lifting and safety requirements.

Painting
Finished with an epoxy–polyester thermosetting powder coating to provide improved gloss and resistance to atmospheric agents while meeting environmental standards.

Technical specifications (table)
Model | 200 | 300 | 400 | 600 | 1000
Capacity (L) | 200 | 300 | 400 | 600 | 1000
Tare weight (kg) | 55 | 70 | 80 | 105 | 185
Load capacity (kg) | 360 | 540 | 720 | 1080 | 1600
Container height (mm) | 470 | 540 | 590 | 640 | 700
Maximum height (mm) | 910 | 1005 | 1055 | 1145 | 1325
Width (mm) | 855 | 855 | 945 | 1165 | 1310
Length (mm) | 960 | 1190 | 1260 | 1340 | 1690

Key features / technical details

• Model options: 200, 300, 400, 600, 1000
• Capacity (L): 200 / 300 / 400 / 600 / 1000
• Tare weight (kg): 55 / 70 / 80 / 105 / 185
• Load capacity (kg): 360 / 540 / 720 / 1080 / 1600
• Container height (mm): 470 / 540 / 590 / 640 / 700
• Maximum height (mm): 910 / 1005 / 1055 / 1145 / 1325
• Width (mm): 855 / 855 / 945 / 1165 / 1310
• Length (mm): 960 / 1190 / 1260 / 1340 / 1690
• Manual-free discharge via tilting arc with two side-mounted lock–unlock levers
• Designed for handling sand, gravel, debris and waste
• Manufactured in compliance with EN13155 (European lifting standards)
• Surface finish: epoxy–polyester thermosetting powder coating for enhanced gloss and atmospheric resistance
