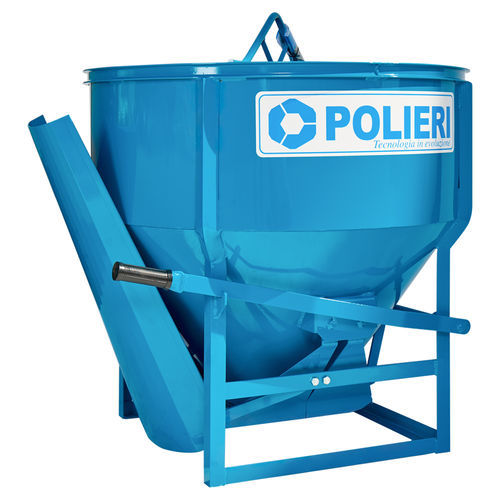

Conical concrete skip 300

bottom-openingcentral unloading

Product overview
Our conical concrete bucket is designed to deliver efficiency, accuracy and versatility during pouring operations in open areas and confined or hard-to-reach locations. The model features an instant change from central to side discharge via a spring-loaded quick-release system that allows the operator to deploy and position the side discharge in seconds, without tools and without interrupting work. This intuitive, reliable solution reduces handling times and improves on-site productivity.

Main features

• Conical geometry for easy loading from truck mixers
• Instant, tool-free switch between central and side discharge via spring-loaded quick-release
• Central two-valve discharge operated by lever for precise concrete flow control
• High structural strength for intensive work cycles
• Available in multiple capacities and dimensions

Painting
Machines and equipment are coated with thermosetting epoxy-polyester powder paint, providing enhanced gloss, excellent resistance to atmospheric agents and compliance with environmental standards.

Technical specifications

• Model 300: Capacity 300 L; Tare weight 85 kg; Load capacity 780 kg; D 905 mm; H 875 mm; H1 1015 mm; L 580 mm; L1 1025 mm
• Model 500: Capacity 500 L; Tare weight 110 kg; Load capacity 1300 kg; D 1055 mm; H 1000 mm; H1 1150 mm; L 690 mm; L1 1205 mm
• Model 800: Capacity 800 L; Tare weight 160 kg; Load capacity 2080 kg; D 1270 mm; H 1140 mm; H1 1360 mm; L 950 mm; L1 1345 mm
• Model 1000: Capacity 1000 L; Tare weight 170 kg; Load capacity 2600 kg; D 1270 mm; H 1290 mm; H1 1510 mm; L 950 mm; L1 1345 mm
• Discharge: central two-valve discharge operated by lever; side discharge deployable via spring-loaded quick-release system (tool-free)
• Construction: conical geometry for easy loading from truck mixers; high structural strength for intensive cycles
• Finish: thermosetting epoxy-polyester powder coating for corrosion resistance and environmental compliance
