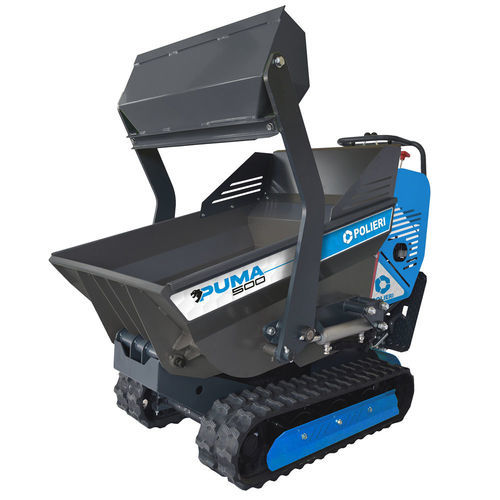

Tracked mini dumper PUMA 500

gasoline enginecombustion enginehydraulic motor

Product overview
Front-discharge dumper body with self-loading shovel. The PUMA Minidumpers are compact tracked dumpers engineered for construction, landscaping and renovation tasks where access is limited. Compact footprint and low center of gravity allow safe operation on uneven terrain. Hydrostatic transmission and overcenter valves provide controlled travel and safe downhill operation.

Key features

• Front-discharge dumper body with integrated self-loading shovel
• Compact dimensions for operation in confined spaces
• Hydrostatic transmission with tipping function for easy unloading
• Powered by HONDA engines (electric start on selected models)
• High-performance gear pump up to 210 bar
• Overcenter valves to prevent uncontrolled acceleration when descending
• Roller-balanced undercarriage: Puma 500/600 with three fixed rollers per side; Puma 800 with four rollers (two fixed, two oscillating)
• Semi-automatic track tensioning with recovery springs to reduce shock and wear
• Robust undercarriage with minimum 5 mm carbon steel, increased 160 mm ground clearance and lifting hooks
• Large non-slip vibration-damping operator platform, foldable for transport
• Puma 600 and 800: dual-speed transmission and compatibility with attachments; quick couplers and support stand included

Technical specifications

• Model — 500 / 600 / 800
• Engine — 500: HONDA GX 200; 600: HONDA GX 270; 800: HONDA GX 390
• Engine power (kW / rpm) — 500: 4.1 / 3600; 600: 6.6 / 3600; 800: 9.5 / 3600
• Fuel tank capacity (L) — 500: 3.1; 600: 5.3; 800: 10
• Oil tank (L) — 500: 14; 600: 14; 800: 20
• Starting system — 500: Manual; 600: Electric; 800: Electric
• Transmission — Hydrostatic (all models)
• Hydraulic motors — Orbital (all models)
• Travel speed (km/h) — 500: 1 speed; 600: 2 speeds — 2.5 / 3.5; 800: 2 speeds — 2.5 / 3.5
• Operating load — 500: 500 kg on flat ground — 350 kg on slope; 600: 600 kg on flat ground — 350 kg on slope; 800: 800 kg on flat ground — 600 kg on slope
• Skip capacity (m³) — 500: 0.21; 600: 0.21; 800: 0.32
• Maximum gradient — 30% for all models (800: specified as 30% / 17°)
• Track dimensions (mm) — 500: 180 × 60 × 38; 600: 180 × 60 × 38; 800: 200 × 72 × 40
• Track tension adjustment — Semi-automatic spring tensioning system (all models)
• Packaging dimensions (cm) — 500: 80 × 160 × 135; 600: 80 × 160 × 135; 800: 80 × 200 × 165
• Weight with packaging (kg) — 500: 425; 600: 485; 800: 750
