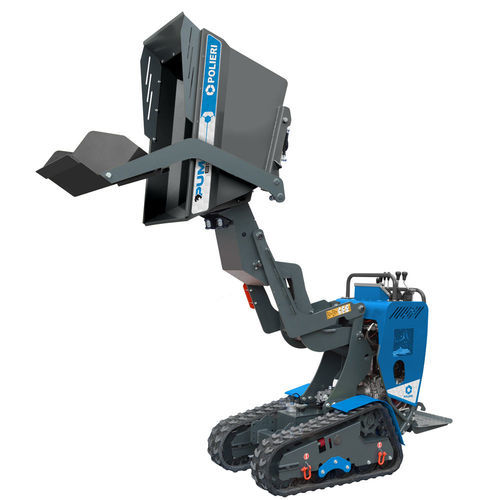

Tracked mini dumper PUMA 800

gasolinecombustion enginegasoline engine

Overview
Front-discharge dumper body with self-loading shovel. The PUMA minidumpers are compact tracked carriers designed for construction, renovation and confined-site work. Compact external dimensions allow operation in restricted areas while the hydrostatic tipping and high front-discharge configuration simplify unloading operations. Standard Honda engine with electric start and a gear pump delivering up to 210 bar ensure consistent performance.

Key Features
2 OVERCENTER VALVES
Overcenter/hold valves increase safety by preventing uncontrolled speed increase during descent under load and by maintaining stability when parked on uneven ground.

ROLLER BALANCED SYSTEM
The PUMA 800 running gear is supported by four rollers per side (two fixed, two oscillating) to pass significant obstacles safely. Models 500 and 600 use three fixed rollers per side.

HONDA ENGINE
Equipped with a Honda engine featuring electric start for reliable ignition and site uptime.

HYDRAULIC SYSTEM
High-performance gear pump providing up to 210 bar. The hydraulic circuit is designed to keep oil temperature within safe limits under demanding operating conditions without the need for an external radiator.

TRACKS – TRACK TENSIONERS
Semi-automatic spring tensioning prevents shocks to the tracks and drive components. Long track base and multiple support rollers allow safe operation on rough or sloped ground up to 30% gradient.

UNDERCARRIAGE
Low center-of-gravity chassis for improved stability on varied terrain. Constructed in carbon steel (min. 5 mm) with 160 mm ground clearance and equipped with lifting hooks for transport.

OPERATOR PLATFORM
Large, non-slip foldable platform with vibration-damping system for operator comfort and reduced storage footprint.

VERSATILITY & ATTACHMENTS
PUMA 600 and 800 feature dual-speed hydrostatic transmission for faster site transfer and accept a range of attachments via quick couplings and a standard support stand for rapid changes.

Technical specifications (table)
Model | 500 | 600 | 800
Engine | HONDA GX 200 | HONDA GX 270 | HONDA GX 390
Engine power (kW / rpm) | 4.1 / 3600 | 6.6 / 3600 | 9.5 / 3600
Fuel tank capacity (L) | 3.1 | 5.3 | 10
Oil tank (L) | 14 | 14 | 20
Starting system | Manual | Electric | Electric
Transmission | Hydrostatic | Hydrostatic | Hydrostatic
Hydraulic motors | Orbital | Orbital | Orbital
Travel speed (km/h) | 1 speed — 2.0 / 3.6 | 2 speeds — 2.5 / 3.5 | 2 speeds — 2.5 / 3.5
Operating load | 500 kg on flat ground — 350 kg on slope | 600 kg on flat ground — 350 kg on slope | 800 kg on flat ground — 600 kg on slope
Skip capacity (m³) | 0.21 | 0.21 | 0.32
Maximum gradient | 30% | 30% | 30% (17°)
Track dimensions (mm) | 180 × 60 × 38 | 180 × 60 × 38 | 200 × 72 × 40
Track tension adjustment | Semi-automatic spring tensioning system (applies to all models)
Packaging dimensions (cm) | 80 × 160 × 135 | 80 × 160 × 135 | 80 × 200 × 165
Weight with packaging (kg) | 425 | 485 | 750

Specifications / Technical data

• Model: PUMA 800
• Engine: HONDA GX 390
• Engine power: 9.5 kW / 3600 rpm
• Fuel tank capacity: 10 L
• Oil tank: 20 L
• Starting system: Electric
• Transmission: Hydrostatic, 2 speeds — 2.5 / 3.5 km/h
• Hydraulic system: Gear pump up to 210 bar
• Hydraulic motors: Orbital
• Operating load: 800 kg on flat ground — 600 kg on slope
• Skip capacity: 0.32 m³
• Maximum gradient: 30% (17°)
• Track dimensions: 200 × 72 × 40 mm
• Track tension adjustment: Semi-automatic spring tensioning system
• Undercarriage: Carbon steel (min 5 mm), ground clearance 160 mm, lifting hooks
• Packaging dimensions: 80 × 200 × 165 cm
• Weight with packaging: 750 kg
