Belt conveyor M200/M300 Serieshorizontalinclinedtransport
Add to favorites
Compare this product
Characteristics
- Technology
- belt
- Form
- horizontal, inclined
- Function
- transport
- Construction
- height-adjustable
- Transported product
- bulk products
- Sector
- for the food industry
Description

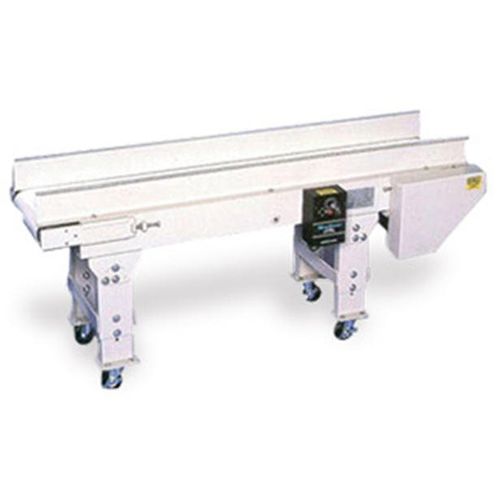

M-200 Series: Inclined Belt Conveyors, Painted Steel. M-300 Series: Horizontal Belt Conveyors, Painted Steel.
Standard features include color to your specification, 12 gauge steel frames, fixed 4" high steel slide rails, 3" diameter pulleys with welded 1" shafts, USDA/FDA approved belts, 1" bore heavy duty flange bearings, 4" wide adjustable legs with floor mount pads, AC motor gearbox, 1/8HP and up, single or three-phase, NEMA 1 control with plug and overload protection, and fixed speed.
TECHNICAL SPECIFICATIONS:
Belt height: - 24 in. (min)
42 ft. (max)
Belt width: - 6 in. (min)
36 in. (max)
Length: - 3 ft. (min)
60ft. (max)
Overall width: - 7 in. more than belt.
