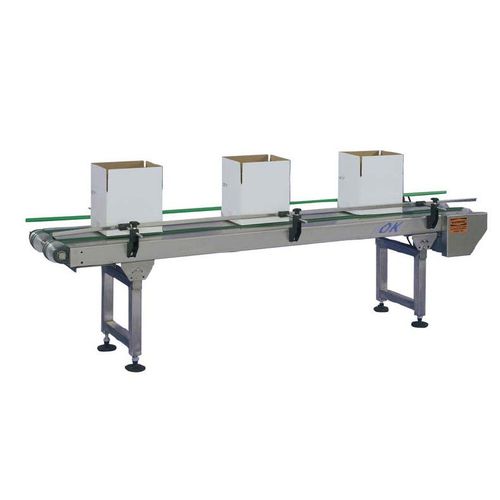

Belt conveyor M800 Series

driven rollerhorizontalinclined

M800 Series Conveyors The M-800 series is a clean and attractive alternative for powered roller or belt conveyor systems. The new M-800 Series is a modular, stainless steel, powered case conveyor system for medium duty applications. An economic, custom system can be created with straight, inclined, declined and corner sections, with multiple sections slave driven off a main section. FEATURES: Modular design. Stainless steel finish. Simple rope-belt design. Cost effective. BENEFITS: Create a custom system with standard sections to suit your requirement. Clean and durable, maintains hygiene. Low maintenance and easy belt change. Quick return of investment. TECHNICAL SPECIFICATIONS: Lengths: - 8' long modules or to requirement. Frame width: - 18" or to requirement Belt speed: - 40 ft./min., variable speed or fixed speeds to requirement. Power requirements: - 110 VAC, 1 Ph, 60Hz, 4 Amp or to requirement. Case weight range: - Up to 20 lbs. Conveyor motors: - 1/4 HP (one motor gearbox every 16 - 80 ft. depending on applications. Conveyor finish: - Stainless steel. Table height: - To requirement. Side rails: - Standard. Leveling: - Standard.
