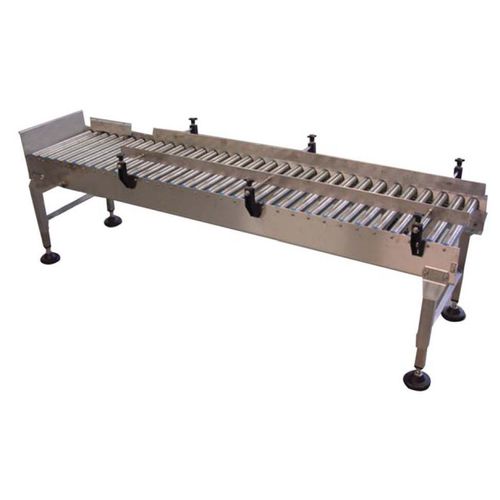

Roller conveyor M1000 Series
chainfor the food industryfood

roller conveyor
roller conveyor
roller conveyor
Add to favorites
Compare this product


Characteristics

Technology
roller, chain
Sector
for the food industry
Transported product
food, can
Form
horizontal, straight
Other characteristics
accumulation, for heavy loads, stainless steel, for heavy-duty applications, indexing
Maximum load

Min.: 0.1 kg (0.22 lb)

Max.: 90.718 kg (90.718 lb)

Description

M1000 Series Conveyors The M-1000 series finally provides a clean and cost effective solution for food and other industries. The new M-1000 Series is a stainless steel chain driven live roller conveyor system for heavy-duty applications. A complete system can be created with straight sections, 90-degree transfers, lift up, indexing and accumulation sections. TECHNICAL SPECIFICATIONS: Lengths: - 10' long straight sections or to requirement. Rollers: - 20.00 wide, 2.00 diameter stainless steel rollers on 3.00 centers. Bearings: - Plastic encased stainless steel bearings. Power requirements: - 110 VAC, 1 Ph, 60Hz, 230/480V, 3 Ph, 60 Hz or to requirement. Controls: - To Requirements. Product weight range: - Up to 200 lbs. Chain: - Stainless steel roller chain. Table height: - Adjustable 24.00-34.00 or to requirement. Side guides: - Adjustable side guides standard. Leveling feet: - Standard. Pneumatic: - 1/4 supply, 80 PSI, only required for optional items. Conveyor motors: - 1/4 HP and up depending of application. Transfers: - 90 degrees. Speed: - Fixed or variable speeds to requirement.
