Clamping rail GCS-DS3

Product description

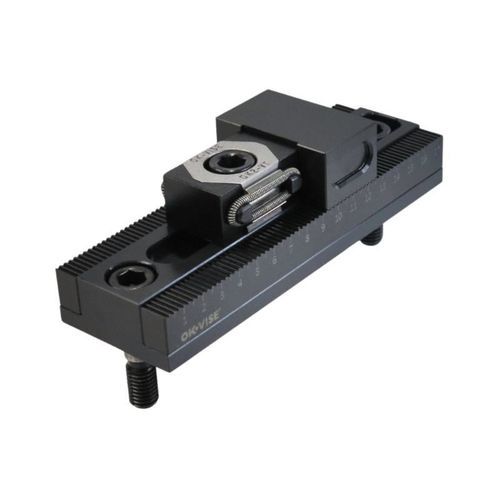

Single‑directional grid system clamp modules for industrial fixturing. Modules accept multiple mounting angles beyond 0° and 90°. The clamp and base rail are combined into a single unit to simplify installation and alignment. Available with Smooth (GCS-DS3) or Serrated (GCS-DR3) jaw options.

Details
Type | Jaw type | A | Weight in g approx. | Dimensions | STEP (3D)
GCS-DS3 | Smooth | 10-68 | 1 990 | PDF drawings available | STEP (3D) available
GCS-DR3 | Serrated | 10-68 | 1 990 | PDF drawings available | STEP (3D) available

Additional information

• Product family: Grid System
• Module orientation: single directional, flexible mounting angles (not limited to 0° and 90°)
• Design: clamp and base rail combined into one unit for simplified mounting
• Jaw options: Smooth (GCS-DS3) and Serrated (GCS-DR3)
• Clamping range / A dimension: 10–68
• Approximate weight: 1 990 g
• CAD/3D: STEP (3D) files available for download
• Technical drawings: PDF drawings available for the product

Caractéristiques / spécifications techniques

• Brand: OK-VISE®
• Models referenced on this page: GCS-DS3, GCS-DR3
• Jaw types: Smooth (DS3), Serrated (DR3)
• A (clamping range): 10-68
• Weight (approx.): 1 990 g
• Combined clamp + base rail unit
• Flexible mounting angles beyond 0° and 90°
• STEP (3D) files and PDF drawings provided (files available from product resources)
