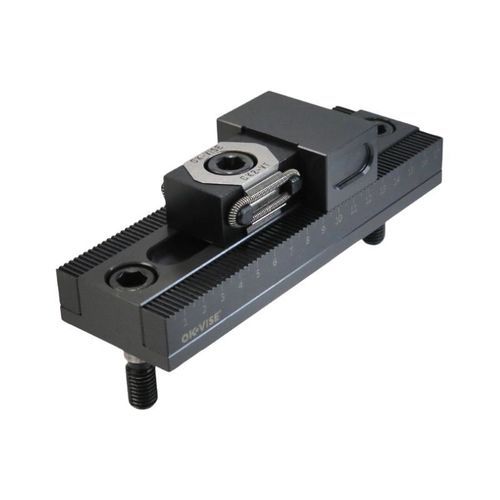

Mechanical clamping unit GCS-D series

railfor guide railsmodular

Description
Clamping modules for single-directional use. Each module mounts on a base rail with an inclined serration, enabling clamping forces to act reliably in one direction. Available with serrated or smooth jaws and supplied with CAD and drawing files for integration into modular workholding setups such as the OK-VISE® Grid System.

Categories

• Grid System
• Multi-Rail RL

Variants and dimensions

• GCS-DR1 — Serrated jaw; A: 10-45 mm; B: 100 mm; C: 125 mm; Weight: approx. 1 620 g; PDF drawing and STEP available.
• GCS-DR2 — Serrated jaw; A: 10-95 mm; B: 150 mm; C: 175 mm; Weight: approx. 1 940 g; PDF drawing and STEP available.
• GCS-DS1 — Smooth jaw; A: 10-45 mm; B: 100 mm; C: 125 mm; Weight: approx. 1 620 g; PDF drawing and STEP available.
• GCS-DS2 — Smooth jaw; A: 10-95 mm; B: 150 mm; C: 175 mm; Weight: approx. 1 940 g; PDF drawing and STEP available.

Additional product images
Multiple product and application images are provided showing the different variants, jaw types and typical installation examples.

Technical specifications

• Base rail with inclined serration designed for single-directional clamping.
• Available variants: GCS-DR1, GCS-DR2, GCS-DS1, GCS-DS2.
• Jaw types: Serrated (DR variants) and Smooth (DS variants).
• Clamping range A: 10-45 mm (DR1/DS1) or 10-95 mm (DR2/DS2).
• Dimensions B / C: 100 / 125 mm (A 10-45) and 150 / 175 mm (A 10-95).
• Approximate weights: 1 620 g (10-45 variants) and 1 940 g (10-95 variants).
• CAD STEP files and PDF drawings available for all listed variants.
• Designed for integration into OK-VISE® Grid System and Multi-Rail modular workholding configurations.
