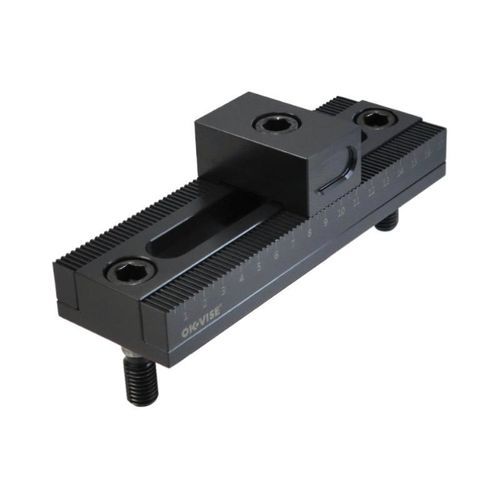

Rectangular stop unit GS-SA1

Description
This module is designed as an adjustable stop when two workpieces are clamped using a single centrally positioned clamp. It enables variable positioning on modular grid fixtures to accommodate different part lengths. For example, on a 50×50 mm grid pattern a minimum 50 mm adjustability is required to clamp all workpiece sizes.

Details (table)

• Types: GS-SA1, GS-SA2
• GS-SA1 — A: 15–75 mm; B: 100 mm; C: 125 mm; Approx. weight: 1,410 g; 3D STEP and PDF drawings available
• GS-SA2 — A: 15–125 mm; B: 150 mm; C: 175 mm; Approx. weight: 1,740 g; 3D STEP and PDF drawings available

Images included on product page

• Main image: GS-SA2_01.png (800×800)
• Other images on the page (illustrative): GS-SXY_D-1.webp, IMG_4681-scaled, GRID_2B-scaled

Technical characteristics / specifications

• Product family: Adjustable Grid System Stop Module for OK-VISE® Grid System
• Purpose: adjustable stop module ideal for clamping two workpieces using a single middle clamp
• Design note: on a 50×50 mm grid pattern a minimum 50 mm adjustability is required to clamp all sizes of workpieces
• Available types: GS-SA1 and GS-SA2
• GS-SA1 – Adjustable range A: 15–75 mm; B: 100 mm; C: 125 mm; Approx. weight: 1,410 g; 3D STEP available
• GS-SA2 – Adjustable range A: 15–125 mm; B: 150 mm; C: 175 mm; Approx. weight: 1,740 g; 3D STEP available
• CAD / STEP files and PDF drawings provided (3D data available)
