Handling gantry OGL series

Overview
The Okuma Gantry Loader OGL series is a factory-integrated gantry loader family for machine tending on Okuma lathes and grinders. Available in compact on-machine and free-standing designs, the OGL series supports a wide range of part weights and geometries and can be pre-programmed or customized to fit specific production requirements.

Key features

• Space-saving on-machine and free-standing gantry designs
• Turn-over device to enable complete part machining
• Pre-programmable or customizable to customer specifications
• Standard kits available in stock for select models

Product variants and highlights
OGL-5
Designed for repetitive production of small, high-precision parts with on-machine convenience.

• Handles Z-axis part load/unload applications
• Compact on-machine design for reduced implementation time and floor space

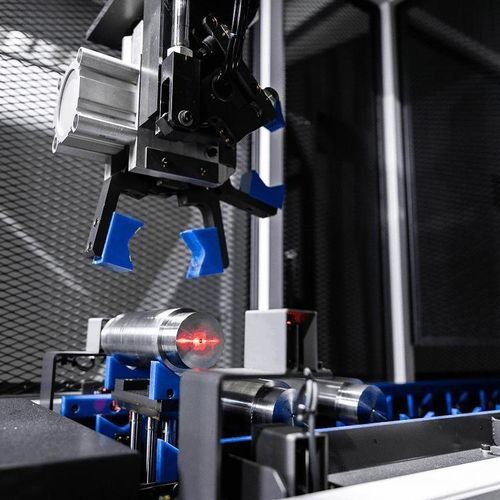

• Standard 3-jaw air chuck gripper
• Supported by Okuma Factory Automation 24/7/365

Weights: Supports part weights up to 5 kg
Machine Pairings: Compatible with Okuma models including 2SP-H, LB EX, LU EX, LT EX, GENOS L, MULTUS Series
Industries: Automotive; Aerospace; Semiconductor & Electronics; Defense

OGL-10
Compact gantry loader for small-to-medium parts, focusing on reduced setup and higher throughput.

• Compact on-machine design for faster implementation and floor space savings
• Supported by Okuma Factory Automation 24/7/365

Weights: Supports part weights up to 10 kg
Machine Pairings: Compatible with Okuma models including 2SP-H, LB EX, LU EX, LT EX, GENOS L, MULTUS Series
Industries: Automotive; Aerospace; Semiconductor & Electronics; Defense

OGL-30
Engineered for fast production of heavier parts, enabling high processing speeds and reduced cycle times.

• Can service multiple machines over long linear distances
• Free-standing design for improved stability during load/unload
• Supported by Okuma Factory Automation 24/7/365

Weights: Supports part weights up to 30 kg
Machine Pairings: Compatible with Okuma models including 2SP-H, LB EX, LU EX, LT EX, GENOS L, MULTUS Series
Industries: Automotive; Aerospace; Medical; Oil & Gas; Defense

OGL-150
Rigid rail system for handling the largest parts with repeatable accuracy across long spans.

• Can service multiple machines over long linear distances
• Free-standing design for improved stability during load/unload
• Supported by Okuma Factory Automation 24/7/365

Weights: Supports part weights up to 150 kg
Machine Pairings: Compatible with Okuma models including 2SP-H, LB EX, LU EX, LT EX, GENOS L, MULTUS Series
Industries: Aerospace; Automotive; Heavy Equipment; Oil & Gas; Power Generation

Customization
Okuma offers pre-installation customization guided by customer specifications, including in-and-out-feed systems and tailored material-handling solutions to meet production needs.

Technical specifications

• Series designation: OGL (capacities: 5 kg, 10 kg, 30 kg, 150 kg)
• Supported part weights: up to 5 kg, 10 kg, 30 kg, 150 kg depending on model
• Design types: compact on-machine (OGL-5/OGL-10), free-standing/long-linear (OGL-30/OGL-150)
• Standard end effector: 3-jaw air chuck gripper (standard on OGL-5)
• Turn-over device available for complete part machining
• Compatible machine pairings: 2SP-H, LB EX, LU EX, LT EX, GENOS L, MULTUS Series
• Industries served: Automotive; Aerospace; Semiconductor & Electronics; Defense; Medical; Oil & Gas; Heavy Equipment; Power Generation
• Support: Fully supported by Okuma Factory Automation (24/7/365)
• Availability: Standard kits in stock for select models; systems are pre-programmable or customizable
