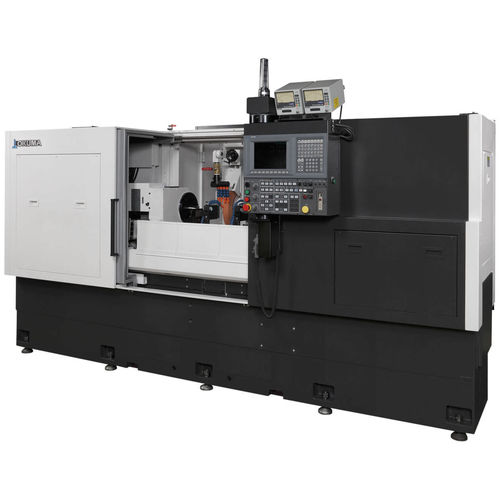

Workpiece grinding machine GA/GP-44FII

CNC2-axis

Available in both plain head (GP-44FII) and angle head (GA-44FII), this CNC O.D. grinding machine can perform the following grinding applications: Center work and optional chuck work operations Straight plunge, multi-plunge, cylindrical traverse, face plunge, and tapered traverse grinding operations Taper, arc and complicated form grinding This grinder is controlled by our OSP control and is capable of simultaneous 2-axis control. The GA/GP-44FII is extremely flexible in handling a wide variety of workpiece shapes in a simple data setting, and the addition of automation accessories will make it an excellent part of a flexible manufacturing system. PART CAPABILITIES - up to 15.75” diameter and 59.06” length WIDE V AND FLAT GUIDEWAY - Designed for rigidity and accuracy HYDRODYNAMIC WHEEL SPINDLE - High rigidity and rotational accuracy utilizing an 18” diameter grinding wheel OSP-P300GA CONTROL - easy operation with IGAP+ conversational programming VARIOUS QUICK CHANGEOVER OPTIONS AVAILABLE- Supports low volume-high mix work Highlighted Specs Max Grinding Dia. (mm) Ø400 Max Grinding Wheel Width (mm) 75 Rapid Traverse (m/min) 16
