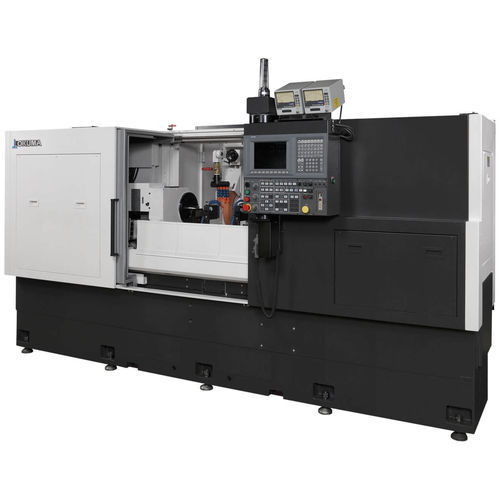

Workpiece grinding machine GA/GP-47FIICNC2-axis
Add to favorites
Compare this product
Characteristics
- Applications
- workpiece
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle speed
150 rpm
(942 rad.min-1)- Power
15 kW, 22 kW
(20.39 hp, 29.91 hp)- Distance between centers
350 mm, 650 mm, 1,000 mm, 1,500 mm
(14 in, 26 in, 39 in, 59 in)
Description
Available in both plain head (GP-47FII) and angle head (GA-47FII), this CNC O.D. grinding machine can perform the following grinding applications:
Center work and optional chuck work operations
Straight plunge, multi-plunge, cylindrical traverse, face plunge, and tapered traverse grinding operations
Taper, arc and complicated form grinding
This grinder is controlled by our OSP control and is capable of simultaneous 2-axis control. The GA/GP-47FII is extremely flexible in handling a wide variety of workpiece shapes in a simple data setting, and the addition of automation accessories will make it an excellent part of a flexible manufacturing system.
Highlighted Specs
Distance Between Centers (mm)
350 / 650 / 1,000 / 1,500
Max Grinding Dia. (mm)
Ø400
Max Grinding Wheel Width (mm)
150
Rapid Traverse (m/min)
16
