electric vibrator / for hoppers / for silos / rotary

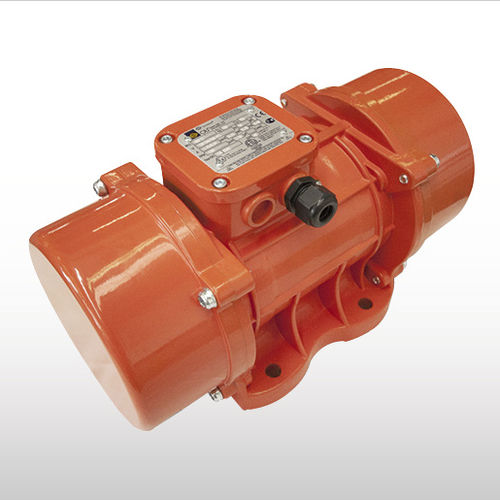

MVE

{{requestButtons}}

Characteristics

  • Operation:

    electric

  • Product applications:

    for hoppers, for silos

  • Type:

    rotary, external

  • Other characteristics:

    direct current, three-phase, single-phase

  • Rotational speed:

    Max.: 3,600 rpm (22,619.5 rad.min-1)

    Min.: 750 rpm (4,712.4 rad.min-1)

Description

Function
MVE External Electric Motovibrators can be used as flow aids, on hoppers or silos to improve material discharge, or as drives on vibrating machines for several purposes such as conveying, screening, sizing, or compacting in a variety of industries.
When the MVE is switched on a sinusoidal centrifugal force is provided by rotation of the eccentric weights. With only one MVE fitted on a vibrating machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.
