electric vibrator / for hoppers / for silos / external
MVE-Exe

{{requestButtons}}

Characteristics

  • Operation:

    electric

  • Product applications:

    for hoppers, for silos

  • Type:

    external

  • Other characteristics:

    three-phase

  • Rotational speed:

    Max.: 3,600 rpm (22,619.5 rad.min-1)

    Min.: 750 rpm (4,712.4 rad.min-1)

Description

Function

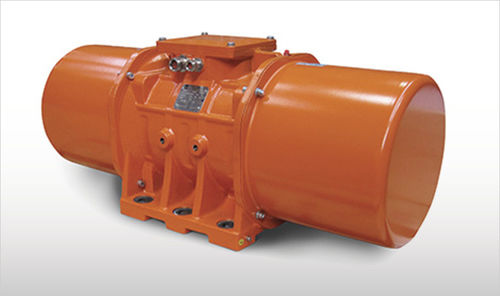

Increased Safety MVE-E External Electric Motovibrators can be used as flow aids on hoppers or to improve material discharge, or as drives on machines several purposes such as conveying, screening, sizing, or compacting, in a variety of industries.
When the MVE-E is switched on a sinusoidal centrifugal force is provided by the rotation of the eccentric weights. With only one MVE fitted on a machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.
Specific materials geometry make Increased Safety MVE-E External Electric Motovibrators suitable highly hazardous environments.
