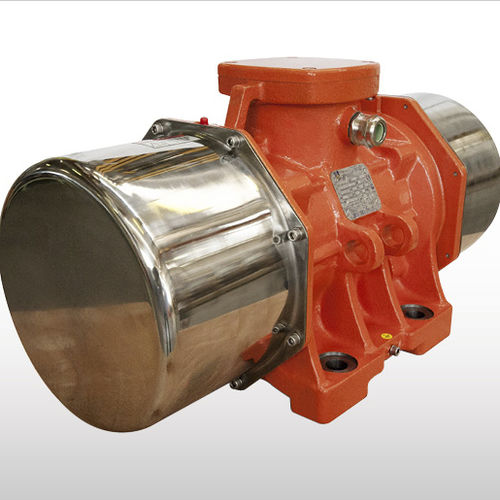

electric vibrator / conveying / external / explosion-proof
MVE-Exd

{{requestButtons}}

Characteristics

  • Operation:

    electric

  • Product applications:

    conveying

  • Type:

    external

  • Other characteristics:

    explosion-proof

  • Rotational speed:

    Min.: 750 rpm (4,712.4 rad.min-1)

    Max.: 3,600 rpm (22,619.5 rad.min-1)

Description

Function
Explosion-proof MVE-D External Electric Motovibrators can be used as flow aids on hoppers or silos to improve material discharge, or as drives for conveying, screening, dewatering or fluid recovery on vibrating machines, especially in the oil & gas industry, andoccasionally in the recycling sector.
When the MVE is switched on a sinusoidal centrifugal force is provided by the rotation of the eccentric weights. With only one MVE fitted on a vibrating machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.
Most applications in the oil & gas sector use two MVE Motovibrators per machine to generate linear movement.
