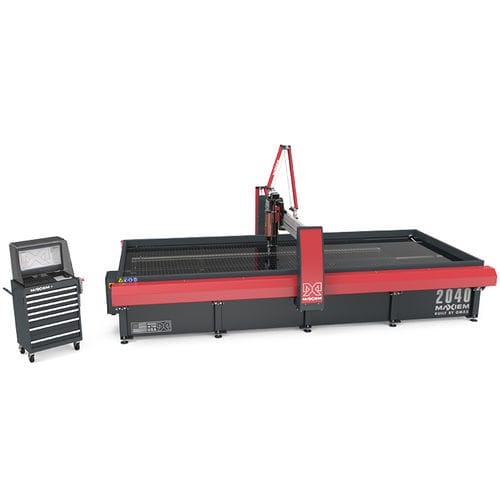

Waterjet cutting machine MAXIEM 2040X

abrasive water-jetfor metalfor plastics

Overview
The MAXIEM 2040X abrasive waterjet is engineered for full-sheet processing and high industrial throughput, offering extended cutting travel for large-format parts. The waterjet system includes pump and software.

Key Highlights

• Cutting envelope: 4.21 m x 2.00 m
• Linear positional accuracy: ±0.076 mm
• Repeatability: ±0.025 mm
• System includes pump and control software

Standard Features

• OMAX IntelliMAX Premium software with advanced nesting and motion control
• All-in-one controller computer with 23 inch display
• IntelliTRAX sealed traction drive inside X-Y beams
• Programmable motorized Z-axis with OMAX MAXJET 5i precision nozzle
• Scissor-style hard plumbing
• IntelliVISOR Mobile for machine monitoring and remote notifications (iOS/Android)

OMAX Benefits

• No heat-affected zones or mechanical stresses on cut parts
• Capable of cutting metals, composites, glass, plastics and other materials
• No tool changes and minimal fixturing reduce setup time

Service & Training

• 1 year of complimentary training
• 1 year of free software upgrades
• 1-year / 2000-hour limited warranty
• 1 day of onsite training at installation

Pump Info (summary)
Continuous operation at 50,000 psi (≈3447 bar) for faster part processing. Reliable pump design extends operating life and lowers operating costs.

Pump Configurations / Typical Pump Data (summary)
Motor power examples — MAXIEM 40 HP: 30 kW; MAXIEM 30 HP: 22 kW; MAXIEM 20 HP: 15 kW; DynaMAX 330: 22 kW. MAX jet power examples — 25 kW, 19 kW, 12.5 kW. Output pressure typically 50,000 psi; some pumps configurable to higher pressures. Typical orifice & flow examples: 0.41 mm / 4.13 lpm; 0.36 mm / 3.18 lpm; 0.28 mm / 1.97 lpm.

Dimensions & Specs (machine)

• Footprint (with pump & controller): 6.63 m x 3.94 m
• Height (with scissor plumbing): 2.69 m
• Operating weight: 12,829 kg
• Tank empty weight: 3,856 kg
• X‑Y cutting travel: 4.21 m x 2.00 m
• Z‑axis travel (motorized): 304 mm
• Table size: 4.90 m x 2.13 m

Model Specs (additional)

• Material support slats: 102 mm x 2 mm galvanized steel
• Maximum supported material load: 1,465 kg/m²
• Electrical requirements: 3‑phase, 380–480 VAC ±10%, 50–60 Hz
• Noise level: < 80 dBA at 1 m (submerged cutting)
• Max speed: 12.70 m/min

Accessories (selected)

• Z‑axis options: collision sensing terrain follower, laser feature finder, OMAX drill head, terrain follower for A‑Jet, vacuum assist for piercing brittle/laminated materials
• Tank & abrasive handling: bulk abrasive delivery systems, variable speed solid removal, water level control, clog sensor
• Water treatment: chiller, laminar filter, reverse osmosis, water recycling systems
• Multi‑axis cutting: VersaJet for 0–60° bevel and complex 3D shapes

Notes
Accessories may reduce available travel. Accuracy specifications are measured at 22° C.
