Waterjet cutting machine MAXIEM 2060X

abrasive water-jetfor glassfor composites

Overview

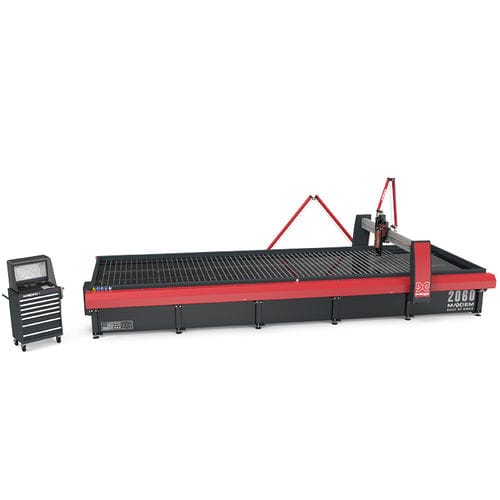

The MAXIEM 2060X is an abrasive waterjet cutting system for oversized materials and long production runs. Cutting envelope: 20' 6" x 6' 7" (6.24 m x 2.00 m). Linear position accuracy: ±0.003" (±0.076 mm).

Key Intro Details

• Cutting envelope: 20' 6" x 6' 7" (6.24 m x 2.00 m)
• Linear position accuracy: ±0.003" (±0.076 mm)
• Repeatability: ±0.001" (±0.025 mm)

Standard Features

• OMAX IntelliMAX Premium software
• All-in-one controller computer with 23" display
• IntelliTRAX traction drive enclosed in X-Y axis beams
• Programmable motorized Z-axis with OMAX MAXJET 5i nozzle
• Scissor-style hard plumbing
• IntelliVISOR Mobile for machine monitoring (iOS and Android)

OMAX Benefits

• No heat-affected zones or mechanical stresses
• Machines metals, composites, glass and plastics across a wide thickness range
• No tool changes and minimal fixturing reduce setup time

Service & Training

• 1 year of free training
• 1 year of free software upgrades
• 1-year / 2000-hour limited warranty
• 1 day of onsite training at installation

Dimensions & Specs (summary)
Footprint (with pump & controller): 28' 9" x 12' 11" (8.76 m x 3.94 m). Height (with scissor plumbing): 8' 10" (2.69 m). Operating weight: 39,553 lb (17,941 kg). Tank empty weight: 10,500 lb (4,763 kg). X-Y cutting travel: 20' 6" x 6' 7" (6.24 m x 2.00 m). Z-axis travel (motorized): 12" (304 mm). Table size: 22' 9" x 7' (6.93 m x 2.13 m). Typical speed: up to 500 in/min (12.70 m/min).

Model Specs (selected)

• Material support slats: 4" x 14Ga galvanized steel (102 mm x 2 mm)
• Maximum supported material load: 300 lbs/sq ft (1,465 kg/sq meter)
• Electrical: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
• Noise level (submerged cutting): below 80 dBA at 1 m

Pump Info (summary)
Continuous 50,000 psi operation for high throughput. Pump design supports over 500 cutting hours between maintenance cycles. Advanced pump technology to reduce operating costs and extend pump life.

Pump Configurations (selected)

• MAXIEM 40 HP (30 kW) — MAX Jet Power 34 HP (25 kW), 50,000 psi, orifice 0.015" / flow 1.09 gpm (0.41 mm / 4.13 lpm)
• MAXIEM 30 HP (22 kW) — MAX Jet Power 25.5 HP (19 kW), 50,000 psi, orifice 0.014" / flow 0.84 gpm (0.36 mm / 3.18 lpm)
• MAXIEM 20 HP (15 kW) — MAX Jet Power 17 HP (12.5 kW), 50,000 psi, orifice 0.011" / flow 0.52 gpm (0.28 mm / 1.97 lpm)

Accessories (selected)

• Z-axis accessories: Collision Sensing Terrain Follower, Laser Feature Finder, OMAX Drill Head, Vacuum Assist
• Tank enhancements: Bulk Abrasive Delivery System, Variable Speed Solid Removal System, Water Level Control, Clog Sensor
• Water treatment: Chiller System, Laminar Filter, Reverse Osmosis, Water Recycling System
• Multi-axis cutting: VersaJET (0–60° cutting range)

Technical specifications

• Model: MAXIEM 2060X
• Cutting envelope (X-Y): 20' 6" x 6' 7" (6.24 m x 2.00 m)
• Table size: 22' 9" x 7' (6.93 m x 2.13 m)
• Footprint (with pump & controller): 28' 9" x 12' 11" (8.76 m x 3.94 m)
• Height (with scissor plumbing): 8' 10" (2.69 m)
• Operating weight: 39,553 lb (17,941 kg)
• Z-axis travel (motorized): 12" (304 mm)
• Linear positional accuracy: ±0.003" (±0.076 mm)
• Repeatability: ±0.001" (±0.025 mm)
• Maximum supported material load: 300 lbs/sq ft (1,465 kg/sq meter)
• Typical pump output pressure: 50,000 psi
• Example pump motor power: 40 HP, 30 HP, 20 HP
