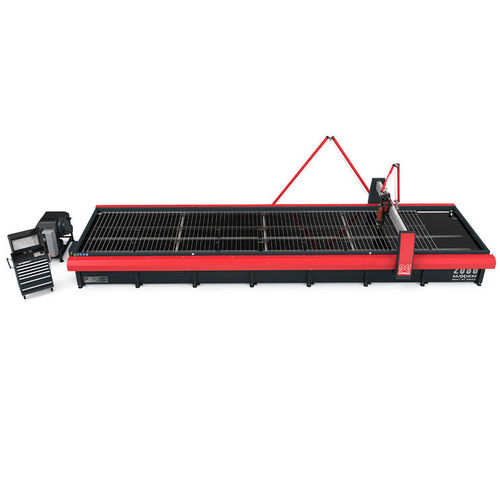

Abrasive water-jet cutting machine MAXIEM 2080

for composite materialsfor glassfor metal

Overview
High-capacity abrasive waterjet cutting system designed for large-scale fabrication and architectural components. System includes pump and IntelliMAX software.

Key Intro Details

• Cutting envelope: 27'10" x 7' (8.48 m x 2.00 m)
• Linear position accuracy: ±0.003" (±0.076 mm)
• Repeatability: ±0.001" (±0.025 mm)

Standard Features

• IntelliMAX Premium software (OMAX)
• All-in-one controller computer with 23" display
• IntelliTRAX traction drive enclosed in coated steel X‑Y beams
• Programmable motorized Z‑axis with OMAX MAXJET 5i precision nozzle
• Scissor‑style hard plumbing as standard
• IntelliVISOR Mobile for machine monitoring, notifications and remote pause

Benefits

• No heat-affected zones or mechanical stresses during cutting
• Processes a wide range of materials and thicknesses: metals, composites, glass, plastics
• No tool changes and minimal fixturing reduce setup time

Service & Training

• 1 year of complimentary training
• 1 year of software upgrades
• 1-year / 2000-hour limited warranty
• 1 day of onsite training at installation

Pump Info
Continuous 50,000 psi operation for faster part processing. Reliable pump design capable of over 500 cutting hours between maintenance cycles (model-dependent). Advanced pump technology reduces operating costs and extends pump life.

Dimensions & Specs (summary)
Footprint (with pump & controller): 35'1" x 12'11" (10.69 m x 3.94 m)
Height (with scissor plumbing): 10'4" (3.15 m)
Operating weight: 50,123 lb (22,735 kg)
Weight (tank empty): 12,800 lb (5,806 kg)
X-Y cutting travel*: 27'2" x 6'7" (8.28 m x 2.00 m)
Z-axis travel (with Motorized Z): 12" (304 mm)
Table size: 27'10" x 7' (8.48 m x 2.13 m)

Model Specs (selected)

• Material support slats: 4" x 14Ga galvanized steel (102 mm x 2 mm)
• Maximum supported material load: 300 lb/ft² (1,465 kg/m²)
• Electrical requirements: 3‑phase, 380–480 VAC ±10%, 50–60 Hz
• Noise level: <80 dBA @1 m (submerged cutting)
• Speed (max): 500 in/min (12.70 m/min)
• Linear positional accuracy*: ±0.003" (±0.076 mm)
• Repeatability*: ±0.001" (±0.025 mm)

Notes
*Accessories may reduce travel. Accuracy specifications at 72°F (22°C).
