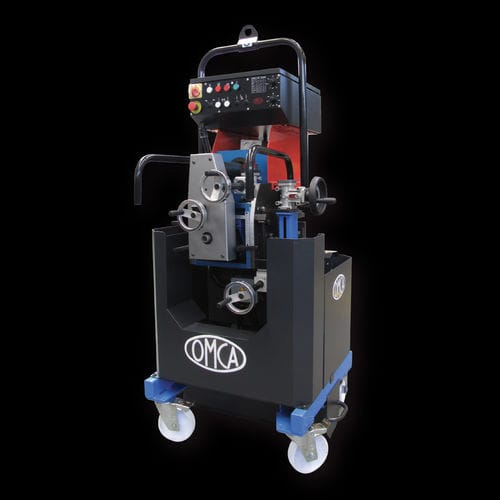

Beveling machine with automatic feeder ART. 920 J BEVEL REVERSEelectricmobilefor sheet metal
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- mobile
- Applications
- for sheet metal
- Other characteristics
- with adjustable angle, with automatic feeder
- Power
5,500 W
(7.48 hp)- Rotational speed
Max.: 900 rpm
(5,654.8668 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Chamfer angle
Max.: 30 °
Min.: 0 °
Description
- Motor Power 230/400 VOLT. 3 PHASE 5,5KW.( 5500W) 50/60 HZ
- Bevel Length max 64 mm max 2.51in
- Bevel Angle 0° – 30°
- Plate Thickness 8 – 100mm 0.315 – 3.93in
- Facing max 90 mm max 3.54in
- J BEVEL MAX 90 mm MAX 3.5IN
- Cutter Ø 80 mm – Z6 – R8 – (*)R10 Ø 3.14in – Z6 – R8 – (*)R10
- Cutter Speed 0 – 900 RPM
- Feeding Speed 0 – 1,4 mt/min 0 – 4.59 ft/min
- Dimensions and weight 967x831x h 1867 mm – Kg. 420 38 x 32.7 x h73.5in – 924 lbs
- Digital Display YES
