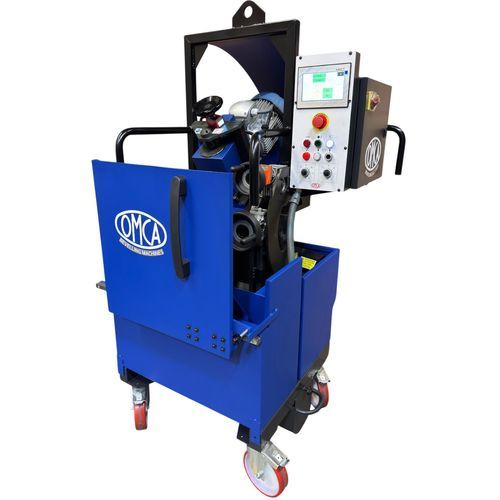

Electric beveling machine ART. 940

mobileautomatic

Overview
Bevelling machine with automatic feeding. Product presented as ART. 940.

Bevel profiles
Angle | α15° | α30° | α37.5° | α45° | α60°
Bevel length (L) | 55 | 56 | 56 | 49 | 48

Performance

• Motor Power: 230/400 V, 3-phase, 4 kW (4000 W), 50/60 Hz
• Maximum Bevel Length: 55 mm
• Bevel Angle range: 15° – 60°
• Plate Thickness: 8 mm – 60 mm (standard); versions on request for wider ranges
• Cutter Speed: 750 RPM (versions with 0–750 RPM available)
• Pipe capability: Ø min 3000 mm
• Cutter: Ø 63 mm Z5
• Feeding Speed: 0 – 1.4 m/min
• Dimensions and weight: 600 x 650 x h1600 mm – 175 Kg

Versions on request

• Plate thickness versions: 8/100 mm and 8/200 mm
• Bottom plate thickness: 8 mm
• Cutter speed adjustment

Technical specifications

• Model: ART. 940
• Motor Power: 230/400 V, 3-phase, 4 kW (4000 W), 50/60 Hz
• Bevel length (max): 55 mm
• Bevel angle: 15° – 60°
• Bevel profiles (L): α15° = 55; α30° = 56; α37.5° = 56; α45° = 49; α60° = 48
• Plate thickness (standard): 8 mm – 60 mm; optional: 8/100 mm and 8/200 mm
• Cutter speed: 750 RPM (optionally adjustable 0–750 RPM)
• Cutter diameter: Ø 63 mm Z5
• Pipe capability: Ø min 3000 mm
• Feeding speed: 0 – 1.4 m/min
• Dimensions (WxDxH): 600 x 650 x h1600 mm
• Weight: 175 Kg
