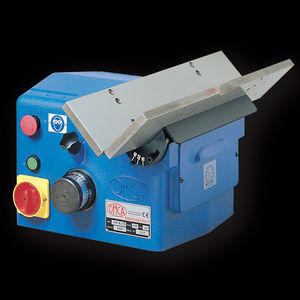

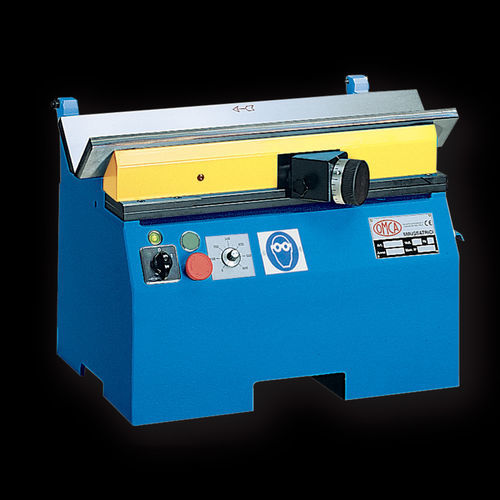

Electric beveling machine ART. 850

deskbenchautomatic

Product name
ART. 850

Overview
Bench bevelling machine designed for producing 45° chamfers up to a maximum bevel length of 10 mm. Suitable cutters and speed regulation options allow use on various materials including plastics with optional diamond inserts for superior finish.

Highlights

• Bevel angle: 45°
• Max bevel length: 10 mm (0.39 in)
• Speed regulation available up to 10,000 RPM (versions on request)

Versions / Options

• Speed regulation from 0 to 10,000 RPM
• Cutter with natural diamond inserts for finishing chamfers on plastic materials (polycarbonate, acrylics, etc.) that provide a very high quality chamfer requiring no polishing
• Art. 850/810: Automatic advance (version available)

Accessories

• Art. 800: Bevelling trolley with retractable wheels and tool drawer. Dimensions: 500 x 500 x 730 mm
• Art. 801: Tubular base for chamfering machines equipped with drawer for tools. Dimensions: 500 x 580 x 650 mm

Technical specifications

• Motor power: 230/400 V, 3 phase, 0.75 kW (750 W), 50/60 Hz
• Bevel length: max 10 mm (max 0.39 in)
• Bevel angle: 45°
• Cutter: Ø 63 mm – Z7 (Ø 2.48 in – Z7)
• Cutter speed: 0 – 6000 RPM (optionally up to 10,000 RPM)
• Dimensions (WxDxH): 640 x 450 x 540 mm
• Weight: 57 kg (125.4 lbs)
