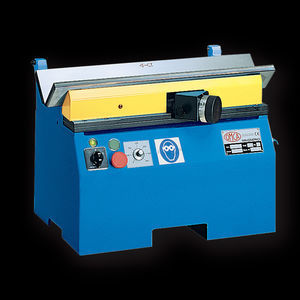

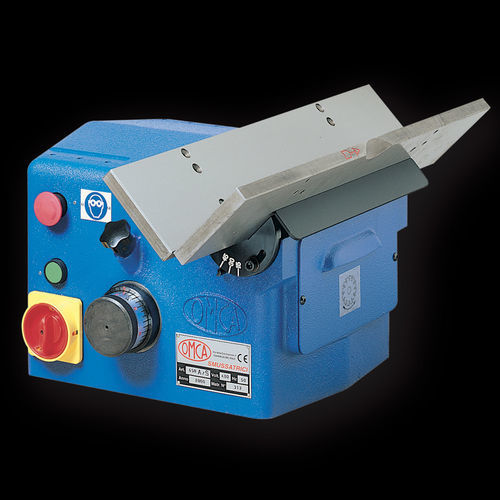

Electric beveling machine ART. 650 A/S – L/S

deskbenchautomatic

Category

• Bench bevelling machines

Performance
Motor Power: 230/400 V, 3 phase, 0.95 kW (950 W), 50/60 Hz
Bevel Length: max 12 mm (0.47 in)
Bevel Angle: 15° – 45°
Cutter: Ø 70 mm, Z12 (Ø 2.75 in, Z12)
Cutter Speed: 2900 RPM
Dimensions and weight: 600 x 500 x h320 mm – 60 kg (132 lbs)
Applications: A = Steel; L = Light Alloys
Bevel Radius: R2, R3, R4, R5

Versions on request

• ART. 650 S: Angle adjustment from 0° to 45°
• Cutter and chamfer inserts available beyond R4
• Speed adjustment: 0–6000 RPM
• Radiused R2 to R4

Accessories

• ART. 852: Automatic workpiece advancement; adjustable speed 300–1200 mm/min; easy to apply on older models; increases productivity with less effort.
• ART. 800: Bevelling trolley with retractable wheels and tool drawer. Dimensions: 500 x 500 x 730 mm.
• ART. 801: Tubular base with tool drawer for chamfering machines. Dimensions: 500 x 580 x 650 mm.

Notes
Price: price on request (PRICE QUOTATION).

Technical specifications

• Model: ART. 650 A/S – L/S
• Motor power: 230/400 V, 3 phase, 0.95 kW (950 W), 50/60 Hz
• Max bevel length: 12 mm (0.47 in)
• Bevel angle: 15° – 45° (S version: 0° – 45°)
• Cutter: Ø 70 mm, Z12
• Cutter speed: 2900 RPM (S version: up to 6000 RPM)
• Dimensions: 600 x 500 x h320 mm
• Weight: 60 kg (132 lbs)
• Applications: Steel (A) and Light Alloys (L)
• Bevel radius options: R2, R3, R4, R5
• Available accessories: ART. 852, ART. 800, ART. 801
