Mobile steam generator

low-pressure

Compact, Easy, Controlled

Many small-scale R&D facilities don’t offer a steam supply. As such, the majority of OMVE’s low-flow-rate systems run on electricity. The exception is aseptic process lines, which are increasingly common and for which low-pressure steam can be helpful for sterilizing the process line.

Direct steam injection is also becoming more and more common. These systems require a steam pressure of up to 8 bar(g).

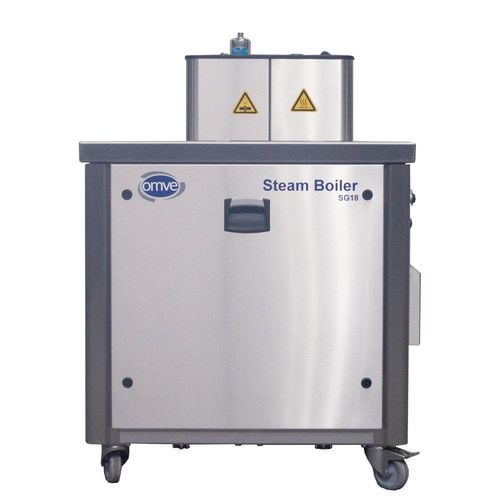

Because there are very few small-capacity boilers available that offer the high pressure needed to generate culinary steam, OMVE has developed its own small steam boiler, the SG18, which is ideal for use with our HT220 range.

The SG18 is designed to generate culinary steam for your OMVE process equipment that requires steam supply, such as the HT220-DSI. This equipment is ideal for research departments and labs that run using electricity, but operate specific equipment requiring steam.

This unit is operated using a touchscreen, meaning you only need to set the required temperature and connect the steam generator to your water and electricity supply.

The SG18 consists of a preliminary water tank and a steam chamber. Steam is produced as soon as the tank is sufficiently filled with water.
If you require a larger steam boiler, we are more than happy to assist you in selecting the right system.

Unique features
Mobile and compact design
Electric heated
Touchscreen control
