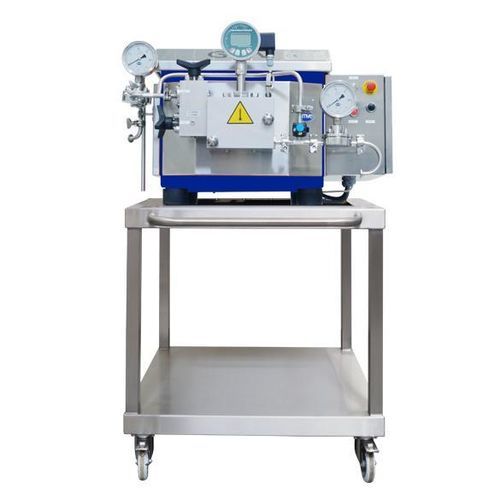

Dynamic homogenizer HP102 series

mobilein-linefor liquids

Product description
The HP102 in-line high-pressure homogenizer is a continuous-processing system designed to operate alongside HTST/UHT lines or as a standalone unit. It refines liquid product properties by improving stability, extending shelf life and enhancing mouthfeel for dairy and plant-based beverages. The system is engineered for hygienic or aseptic operation with minimal dead volume and supports high automation levels for consistent, deviation-free production.

Unique Features

• Hygienic or aseptic design with optional sterile filter
• Two-stage homogenization valves for precise particle-size control
• Two-piston drive minimizes pulsation — no pulsation dampers required
• Minimal dead volumes to maximize product recovery and hygiene
• High level of automation for reproducible results
• No steam required for standard operation
• Suitable for CIP and SIP (Cleaning and Sterilization in Place)
• Optional mobile trolley for laboratory flexibility

Applications

• Dairy and milk products
• Plant-based beverages

Downloads

• Homogenizing Range (PDF)
• Brochure HP102 (PDF)

Technical specifications

• Model: HP102
• Brand: OMVE
• Type: In-line high-pressure homogenizer (continuous operation)
• Valve configuration: Two-stage homogenization valves
• Drive / pulsation control: Two-piston design; no pulsation dampers required
• Automation: High level for reproducible, deviation-free operation
• Utilities: No steam required for standard operation
• Cleaning & sterilization: Suitable for CIP and SIP
• Hygiene / recovery: Minimal dead volumes
• Integration: Compatible with HT220 Basic or stand-alone operation
• Mobility: Optional mobile trolley for lab use
