Dynamic homogenizer HP304 series

in-linefor liquidsfor the food industry

Overview

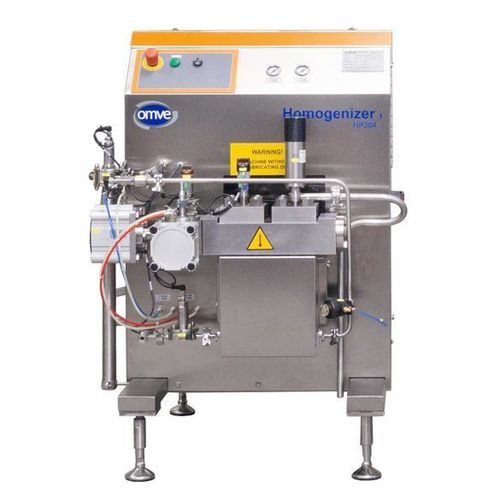

The OMVE HP304 in-line high-pressure homogenizer is a pilot-scale unit designed for integration with OMVE HTST/UHT systems and other small-scale continuous-flow heat treatment installations to accurately simulate production processes. It improves product stability, shelf life, taste and mouthfeel and can reduce the need for additives.

Key benefits

• Accurate process simulation for scale-up and R&D
• Inline integration with HTST/UHT systems without pulsation dampers
• Reduced operator errors through optional automatic pressure or flow control
• Lower maintenance costs and improved processing productivity

Unique features

• 3 plungers for minimum pulsation
• Easy operation with HTST/UHT systems
• Suitable for CIP and SIP
• High level of automation for effortless operation
• Two-stage homogenization valves
• Minimum of dead volumes
• Aseptic design upgrade available

Downloads
Homogenizing Range (PDF), Brochure HP304 (PDF).

Technical specifications

• Model: HP304 (Pilot 3-piston in-line homogenizer)
• Designed for in-line integration with OMVE HTST/UHT and other small-scale continuous-flow heat treatment systems
• Three-plunger (3 pistons) design to minimize pulsation
• Two-stage homogenization valves
• Does not require pulsation dampers
• Compatible with CIP and SIP cleaning procedures
• Option for aseptic design upgrade
• Minimal dead volume to reduce product loss and improve process cleanliness
• Can be integrated with automatic pressure or flow control for higher automation and reduced operator errors
