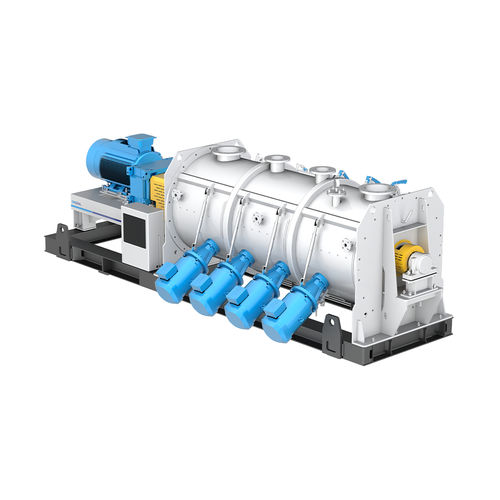

Plowshare mixer DHF series

horizontalbatchpowder

Ploughshare mixer is mainly used for high-efficiency mixing of powder. The stirring shaft is fixed on the horizontal drive shaft by a bracket and rotates along the wall to make the materials diffuse and shear with each other and achieve better mixing efficiency. Higher efficiency to achieve better mixing uniformity with shorter time Lower energy consumption Low speed mixing, small rise in temperature low vibration and low noise & no material leakage Mixing in batches to ensure the consistency of materials Intelligent control to reduce manual intervention Colters are 90° & circumferential designed, gap between colter and wall is 4-7mm, which greatly improves the mixing uniformity. Interlocking ceramic sheet + high-strength adhesive bond to achieve longer service life. Improve sealing structure of shaft seal, discharge plate and colter parts to eliminate leaking risk of dust during operation. During operation, Max. vibration value 2.5mm/s is far lower than the required value (11.2mm / s) and Max. noise value 83db is lower than the required value of 85dB. Improve sealing structure of shaft seal and colter parts for convenient maintenance by pulling out parts at one time.
