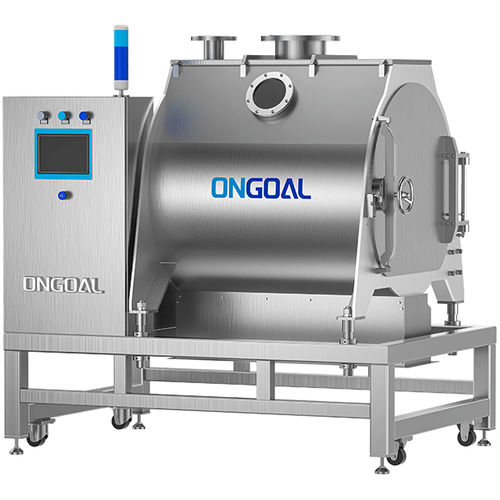

Paddle mixer

horizontalmobilebatch

It is mainly used for mixing powder or powder adding a small amount of liquid. It solves the problems of low uniformity and dead angle caused by different specific gravity of materials. When the equipment is running, the paddle moves the material to the entire vessel space, so that the material is in an instant weightless state, widely interlaced with convection and diffusion,so as to achieve a uniform mixing effect. It’s also called a gravity-free mixer High uniformity: the equipment can maintain excellent mixing uniformity with CV value not exceed 2% Efficient mixing: the mixing time of a single batch is about 90 seconds Energy saving and environmental protection: lower energy consumption Exquisite design: improved structure design, easy cleaning of equipment, and not easy to generate residue Easy to maintain: with cantilever bushing blade structure, maintenance is more convenient Intelligent control: each processing step is controlled by computer, without too much manual intervention The cantilevered bushing paddle structure allows dismounting from the inspection door. The design of quick replacement and easy cleaning ensures low maintenance requirements. The discharge port adopts a wedge-shaped structure. The fully open discharge door requires a short discharge time and brings higher efficiency. The unique shaft end seal design is adopted with adjustable preload. The discharge plate is supported and sealed at the dead point of the connecting rod to ensure no dust leakage during operation. The spacing between the paddle and the vessel can be adjusted, and the processing gap is between 2 and 4mm.
