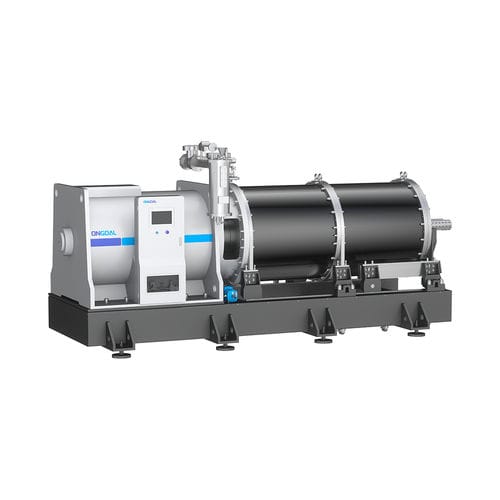

Lithium battery grinding mill SHB series

pinwith rodshorizontal

SDBP series permanent magnet direct drive rod-pin bead mill is a professional grinding equipment developed by ONGOAL for battery materials. It adopts rod-pin structure with high energy density, fully automatic dosing system to ensure continuous production of grinding, providing continuously high efficiency nano grinding High efficiency grinding: high power, rod-pin structure and high energy density Reliable seal: ceramic-alloy dynamic-static combination double-end mechanical seal Anti magnetic foreign object: metal foreign body isolation protection through fully encapsulated rotor and fully ceramic barrel Smart control: each processing step is controlled by the system without manual intervention Safety interlock: automatically monitor and interlock for grinding temperature, flow rate, pressure, and other operating data to realize automatic protection With professional fluid-solid coupling analysis and simulation, we design the reasonable bar pin layout to form axial and radial flow gradients in the cavity, so that the medium is fully and uniformly ground. The screen adopts a wedge-shaped structure and extends into the first stage rotor, which facilitates the smooth passage of slurry and increases the filtering area. Ultrasonic self-cleaning system prevents the screen from clogging. The rotor completely wrapped in polyurethane, with hyper abrasion resistance, oil resistance, and aging resistance to extend the lifespan of grinding balls and eliminate the generation of metal foreign bodies.
