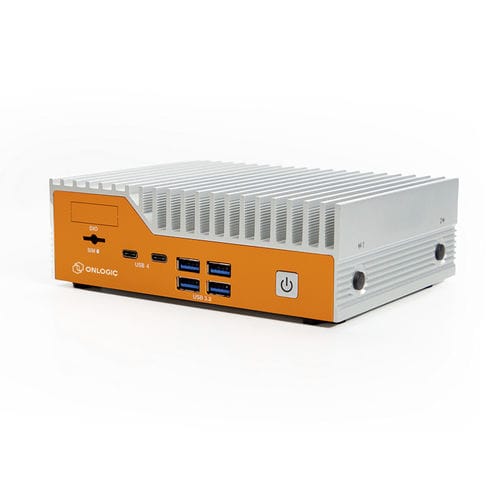

Embedded computer Helix 401
Intel® Celeron® Processor 7305EIntel® Core™ i3-1220PEIntel® Core™ i5-1250PE

embedded computer
embedded computer
embedded computer
embedded computer
embedded computer
embedded computer
embedded computer
Add to favorites
Compare this product


Characteristics

Type
embedded
Processor
Intel® Celeron® Processor 7305E, Intel® Core™ i3-1220PE, Intel® Core™ i5-1250PE, Intel® Core™ i7-1270PE
Ports
USB 3.2, DisplayPort, RS-232, gigabit Ethernet, WiFi, RS-485, 4G, Bluetooth, Mini PCIe, RS-422, PCI Express, serial port, DDR5 SDRAM, CAN bus, USB 4.0
Domain
industrial, automation, for IoT applications, data acquisition, professional, data processing, for displays
Other characteristics
fanless, EDGE, GPU, Linux, wall-mounted, DIN rail, VESA mounting

Description

The Helix 401 offers scalable, high-performance processing and accelerated graphical display functionality to simultaneously drive multiple 4K displays, making it the ideal fanless computer for many Automation and IIoT applications. As a certified Red Hat system, the Helix 401 is ready to support Red Hat Enterprise Linux versions 8.7 , 9.1, and beyond. Intel 12th Generation Hybrid-Core processing 4x USB 3.2 Gen 2, 2x USB 4 (40 Gb/s) [Thunderbolt certification pending] 4x concurrent 4k displays Hardware Line: Industrial (Fanless) Cooling Type: Fanless Processor: Intel Alder Lake 12th Gen Celeron 7305E, Intel Alder Lake 12th Gen i3-1220PE, Intel Alder Lake 12th Gen i5-1250PE, Intel Alder Lake 12th Gen i7-1270PE Processor Generation: Alder Lake Graphics/GPU: Intel UHD Graphics (Celeron; i3), Intel Iris Xe (i5; i7) - Dual Channel memory required Memory Type: DDR5 Memory Capacity: 64 GB Memory Speed: 4800 MHz Memory Slot Count: 2.000000 Number of Displays Supported: 4 Rear I/O: 2x Full size DisplayPort 1.4a, 2x Gb LAN, 2x Antenna punch outs, 1x Serial/CAN Punch out (DB9, RS232-422-485 Optional), Barrel Jack with 19~24 V input, Terminal Block Option - Punch out with 12~24 V Front I/O: 1x Power Button (LED Backlit), 4x USB 3.2 Gen 2, 2x Type C USB 4 (40 Gb/s)*, 3FF-Sim slot (Mapped to the B-Key), 1x DIO port Punch out *Thunderbolt Certification Pending Expansion Options: 1x M.2 2230 E-key, 1x M.2 2280 M-key, 1x M.2 2280/3042 B-key (PCIe x2; USB 3.0; SATA) Storage Options: 1x M.2 2280/60/3042 B-key (PCIe x2; USB 3.0; SATA), 1x M.2 2280 M-key LAN Controller: Intel I210-IT GbE, Intel I219 GbE

Catalogs

Helix 401
Helix 401
3 Pages
