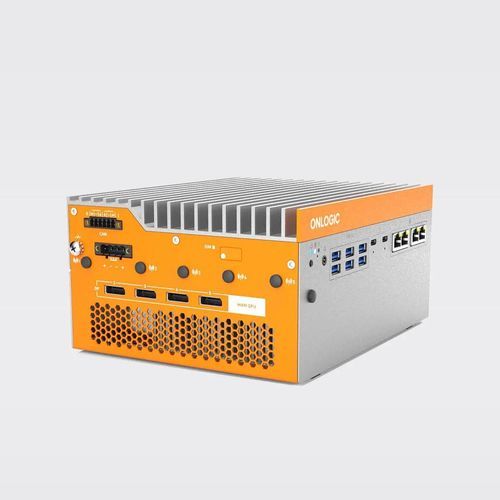

EDGE PC Helix 525

Edge AIGPUartificial intelligence

Product Overview
OnLogic Helix 525 is a fanless industrial computer equipped with Intel Core Ultra processors and an isolated MXM slot for GPU expansion, engineered for AI and graphics workloads at the edge in harsh environments.

Key Features

• Fanless hybrid design for reliable operation in industrial or outdoor-edge conditions
• Intel Core Ultra processing (Series 1; Series 2 planned)
• MXM GPU expansion supporting NVIDIA RTX A1000/A2000/A4500 options
• Multiple M.2 slots and optional dual 2.5" SSD bays
• Front I/O including USB 3.2 Gen2, Thunderbolt 4 and 4x 2.5 GbE LAN

CPU, Memory & Storage
Supports Intel Core Ultra processors with onboard BGA socket. Memory: DDR5 up to 96 GB (5600 MT/s, dual channel). Storage: 1x M.2 2280 M-Key (PCIe Gen4 x4), additional M.2 B‑Key and 2242 slots; optional 2.5" drive bays.

I/O & Connectivity

• Front I/O: power button, factory reset, 3.5 mm audio, 6x USB 3.2 Gen2 (Type A), 2x Thunderbolt 4 (USB-C), 4x 2.5 GbE LAN
• Rear/optional I/O: up to 4x COM (RS-232/422/485), CAN, DIO, 2x DisplayPort 2.1 UHBR20
• Integrated: 4-pin terminal block power, SIM 3FF (mapped to M.2 B-Key), antenna mounts, grounding lug

Expansion

• Isolated MXM GPU slot (supports NVIDIA MXM modules)
• 1x M.2 2280 M-Key (PCIe Gen4 x4), 1x M.2 B-Key, additional M.2 2242/60 slots
• Optional Hailo or other AI accelerators and modular I/O (CAN, DIO)

Certifications & Environment

• Compliances: CISPR 32/35, EN 55032/55035, EN 60601-1-2 (4th ed.), EN 60945, EN 62368-1, TAA, UKCA, WEEE
• Operating temperature up to 50 °C; humidity 5%–95% non‑condensing

Technical Specifications

• Brand: OnLogic
• Model: Helix 525
• Cooling: Fanless hybrid / active-cooled options
• Memory: up to 96 GB DDR5
• GPU: Intel ARC onboard; optional NVIDIA MXM (RTX A1000/A2000/A4500)
• Dimensions (L×W×H): 106 × 177 × 225 mm
• Weight: 4.13 (unit per vendor)
• Input voltage: DC 19–24 V (4‑pin terminal block)
• Accessories: 1x 4-pin terminal block mating connector
