Box PC Helix 522
EDGEVESA mountingDIN rail

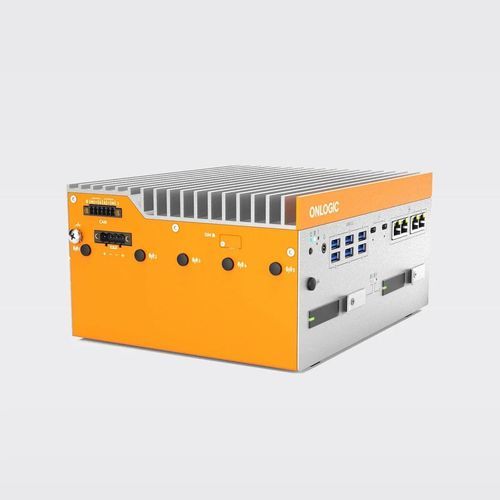

Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail
Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail
Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail - image - 2
Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail - image - 3
Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail - image - 4
Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail - image - 5
Box PC - Helix 522 - ONLOGIC - EDGE / VESA mounting / DIN rail - image - 6
Add to favorites
Compare this product
Go to the ONLOGIC website for more information

Characteristics

Type
box, EDGE
Configuration
VESA mounting, DIN rail, rack-mount, wall-mounted
Processor
Intel® Core™ Ultra
Ports
DisplayPort, 2.5 GbE, CAN bus, SATA, USB, M.2, USB Type-C
Domain
industrial
Other characteristics
fanless
Memory
96 GB

Description

Overview
  • Fanless industrial computer designed for continuous operation at the network edge and in harsh environments
  • Equipped with Intel Core Ultra processors for high compute and AI inference performance
  • 2x 2.5-inch SATA hot-swap bays plus M.2 PCIe Gen4 storage options to minimize downtime
  • Designed and manufactured by OnLogic for industrial deployment


Key features
  • Fanless thermal architecture suitable for dusty or vibration-prone sites
  • Intel Core Ultra processor family; memory up to 96 GB DDR5
  • Front I/O: 6x USB 3.2 Gen2, 2x Thunderbolt 4 (USB-C), 4x 2.5 GbE LAN
  • Multiple mounting options: DIN, wall, VESA and rack


Technical specifications
  • Form factor: Fanless industrial computer
  • Processor family: Intel Core Ultra (Series 1 & 2)
  • Memory: DDR5 up to 96 GB, dual channel
  • Storage: 1x M.2 2280 (PCIe Gen4 x4) + 2x 2.5-inch SATA hot-swap (7.0–9.5 mm)
  • I/O: 6x USB 3.2 Gen2, 2x Thunderbolt 4, 4x 2.5 GbE, 2x DisplayPort, optional COM/CAN/DIO
  • Power: 12–24 V DC input via 4-pin terminal block
  • Operating temperature: 0 to 50 °C; humidity 5 %–95 % non-condensing
  • Certifications: UL, RoHS, FCC, CE, EN 60601-1-2 (selected configs), TAA, UKCA
  • Dimensions: 106 × 177 × 225 mm; Weight: 3.31 kg
