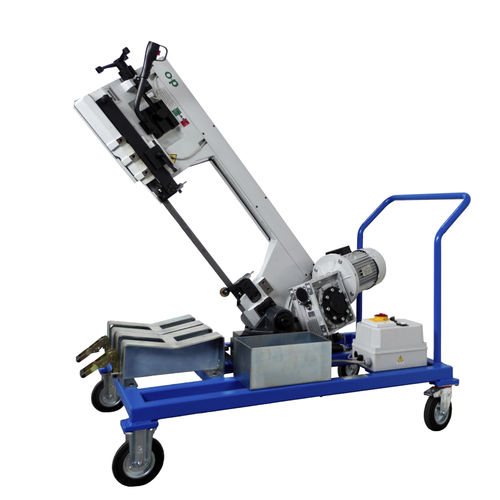

Toothed blade cutting machine TF IH10
for metalfor rubberfor hoses

Toothed blade cutting machine - TF IH10 - OP Srl - for metal / for rubber / for hoses
Toothed blade cutting machine - TF IH10 - OP Srl - for metal / for rubber / for hoses
Add to favorites
Compare this product
Go to the OP Srl website for more information

Characteristics

Technology
toothed blade
Material
for metal, for rubber
Product handled
for hoses
Applications
for industrial applications
Phase
three-phase
Other characteristics
precision, mobile
Tube diameter

10 in, 280 in
(11 in)

Cutting speed

Min.: 38 m/min

Max.: 77 m/min

Laser power

900 W, 1,600 W

Overall length

900 mm
(35 in)

Maximum width

2,000 mm
(79 in)

Height

1,000 mm
(39 in)

Weight

270 kg
(595.25 lb)

Power supply

400 V

Description

The TF IH10 saw is ideal for cutting industrial hoses up to 10” and Ø 280 mm. Its band saw blade speed ranges from 38 to 77 m/min to provide a straight and precise cut of the hose. The cutting operation is controlled manually by the operator. Since industrial hoses are often heavy and long, our TF IH10 is mounted on a floor-level frame equipped with 4 wheels which can be easily moved around the workshop.
