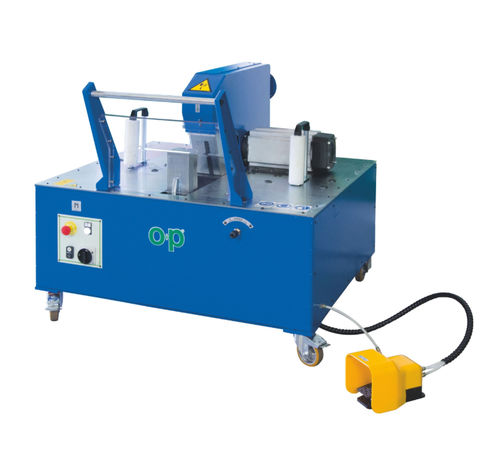

Rotary blade cutting machine TF5 I
for rubberfor hosesthree-phase

Rotary blade cutting machine - TF5 I - OP Srl - for rubber / for hoses / three-phase
Rotary blade cutting machine - TF5 I - OP Srl - for rubber / for hoses / three-phase
Add to favorites
Compare this product
Go to the OP Srl website for more information

Characteristics

Technology
rotary blade
Material
for rubber
Product handled
for hoses
Phase
three-phase
Tube diameter

195 mm
(8 in)

Cutting speed

2,900 mm/min
(1.903 in/s)

Laser power

7,500 W

Operating pressure

5 bar
(72.52 psi)

Overall length

1,140 mm
(45 in)

Maximum width

1,170 mm
(46 in)

Height

1,020 mm
(40 in)

Weight

355 kg
(782.64 lb)

Power supply

400 V

Description

Hose saw TF5I is the ideal machine to cut industrial hoses up to 6’’, max. Ø 195 mm. The machine is equipped with diamond blade Ø 520 mm, 7.5 Kw self-braking motor, foot pedal (included in the price), nr.2 adjustable hose guides and allows the possibility to adjust the cutting speed. It was conceived with a very low barycenter and is provided with wheels, so as to facilitate the handling of heavy and bulky industrial hoses.
