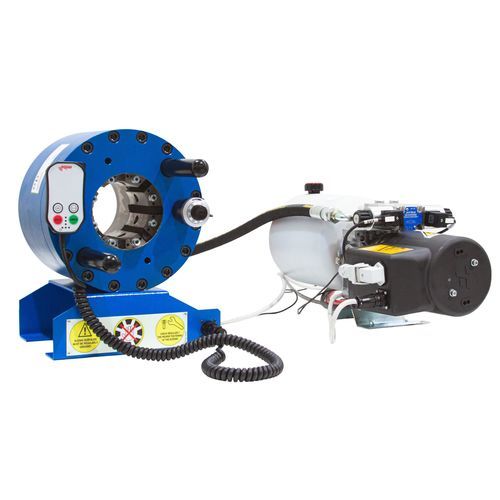

Hydraulic hose crimping machine TUBOMATIC H83/E LIGHT

hydraulicelectro-hydrauliccompact

Product overview
The TUBOMATIC H83/E 12V LIGHT from OP ITALIA is a lightweight hydraulic hose crimping press designed for installation on service vehicles (vans) and mobile workshops. With a crimping force of 135 TON, it crimps hoses of 1" with 6 spirals, 1"1/2 with 4 spirals and 1"1/4 with 4SH, enabling reliable field hose assembly.

Main features

• Total weight without oil: 76 kg.
• Suitable for crimping all common hose fittings.
• 12V DC power pack; motor power 2 kW (2.1 HP).
• Single-acting cylinder included; oil not supplied.

Technical specifications

• Crimping force: 135 TON (149 US TON).
• 6 spirals — 2 pieces: 1".
• 4 spirals — 2 pieces: 1"1/4.
• Compatibility note: 1"1/2 with 4 spirals as indicated by manufacturer.
• Maximum diameter: 64 mm (2.5").
• Die opening: Ø + 25 mm (Ø + 1.6").
• Standard voltage: 12V D.C.
• Motor power: 2 kW (2.1 HP).
• Machine dimensions (L x W x H): 288 x 343 x 356 mm (11.34" x 13.50" x 14.02").
• Power pack dimensions (L x W x H): 290 x 536 x 267 mm (11.42" x 21.10" x 10.51").
• Total weight without oil (page data): 76 kg; alternative weight entry on source: 21 kg (46 lbs).
• Oil (not included): 5 L.

Applications

• On-board installation for service vans and mobile workshops.
• Field maintenance and on-site hydraulic hose assembly.
• Industrial maintenance requiring portable crimping capability.
