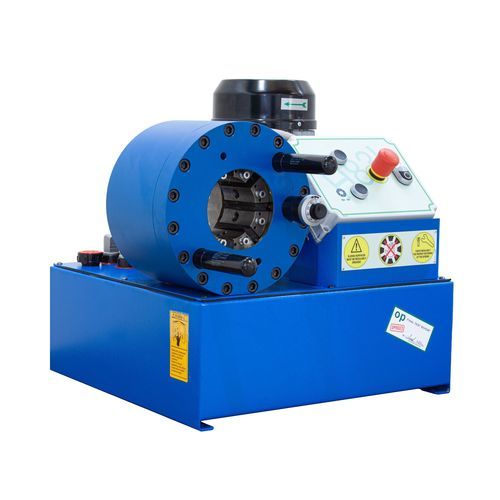

Hose crimping machine TUBOMATIC H83 L

hydraulic hosehydraulic

Product overview
Available in a 110V configuration, the TUBOMATIC H83 L is a horizontal crimper for assembling hydraulic hoses: up to 1" for six-spiral constructions and up to 1"1/4 for four-spiral constructions. The machine is designed for workshop use. Product specifications may be modified without prior notice.

Key features

• Horizontal crimper designed for hydraulic hose assembly
• Compatible with 6-spiral and 4-spiral hose constructions
• Includes oil (30 L)
• Single-effect cylinder

Technical specifications

• Model: TUBOMATIC H83 L
• Crimping force: 136 TON (150 US Ton)
• 6 spirals (2 pieces): 1"
• 4 SP (2 pieces) with special die: 1"1/2
• 4 SH (2 pieces): 1"1/4
• Maximum diameter: 62 mm (2.4")
• Die opening: Ø + 25 mm (Ø + 0.98")
• 90° fittings supported: 3/4"
• Standard voltage: 400V 50Hz 3PH (110V configuration available)
• Motor power: 2.2 kW (2.9 Hp)
• Dimensions LxWxH: 572 x 643 x 526 mm (22.5" x 25.3" x 20.7")
• Oil (included): 30 L (7.9 US Gal)
• Weight without oil: 113 kg (249 lbs)
• Cylinder: single-effect
