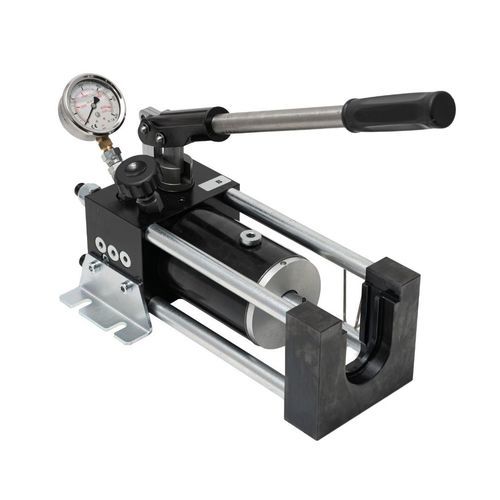

Pre-assembly pipe-flaring machine UNISPEED US-FL/01 LIGHT MAN

Overview
The UNISPEED US-FL/01 LIGHT MAN is a manual tool for the pre-assembly of DIN 2353 cutting rings on rigid hydraulic tubes and for optional 37° flaring. It handles tube outer diameters from 6 to 42 mm with a maximum wall thickness of 4 mm, for materials from stainless steel (AISI 316 TI) to carbon steel (ST 37.4). It is designed for mobile/outdoor service operations.

Features

• Manual pre-assembly equipment for DIN 2353 cutting rings
• Supports tube diameters: 6 to 42 mm
• Maximum tube thickness: 4 mm
• Materials handled: AISI 316 TI (stainless steel) and ST 37.4 (carbon steel)
• Designed for outdoor/mobile service use
• Optional tool holder for 6–42 mm
• Optional 37° flaring module

Technical specifications

• PREASSEMBLY: 24° — 6 - 42 x 4 mm
• FLARING: 37° (optional)
• MATERIALS: AISI 316 TI — ST 37.4
• WEIGHT: 17 kg (37.5 Lbs)
• DIMENSIONS (L x W x H): 210 x 500 x 240 mm (8.3'' x 19.6'' x 9.4'')
• LEVER LENGTH: 410 mm (16.1'')
• COMPATIBILITY: DIN 2353
• FUNCTION: Manual pre-assembly & optional 37° flaring
• Product specifications may be subject to change without prior notice
