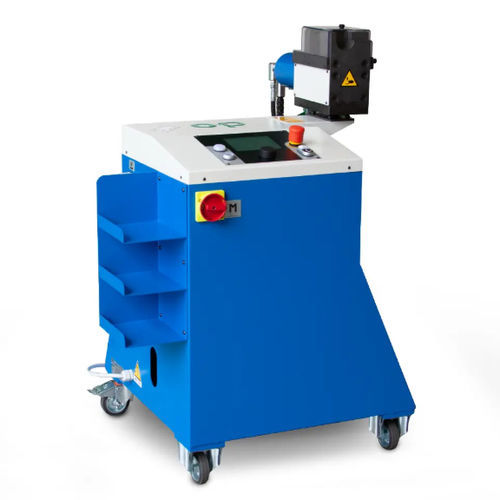

Pre-assembly pipe-flaring machine UNISPEED USFL 24/37 ES 6/18

Overview
The UNISPEED USFL 24/37 ES 6/18 performs preassembly of DIN2353 compression rings and, with an optional flaring block, 37° flaring of hydraulic rigid tubes up to 18 mm diameter and 2 mm wall thickness. The cylinder is not integrated into the main structure (patent pending), increasing available working space and enabling processing of tubes with very short straight ends found in shaped or composite rigid tubes. The machine includes an electronic touch-screen control for parameter input and recipe saving. Flaring tools supplied according to UNI ISO 8434-2 and DIN 3949.

Notes
Product specifications may be modified without prior notice.

Main features

• 37° FLARING — 6 - 18 x 2 mm (1/4" - 5/8" x 0.08")
• PREASSEMBLY 24° — 6 - 18 x 2 mm
• MATERIALS — AISI 316 Ti, ST 37.4
• WEIGHT WITHOUT OIL — 132 kg (291 lbs)
• DIMENSIONS (L x W x H) — 808 x 798 x 1075 mm (31.8" x 31.4" x 42.3")
• STANDARD VOLTAGE — 400 V 50 Hz 3PH
• MOTOR POWER — 0.75 kW (1 Hp)
• OIL (NOT INCLUDED) — 13 L
• ELECTRONIC TOUCH-SCREEN CONTROL — included

Optional

• ELECTRIC PEDAL — optional
• 37° FLARING BLOCK 6-18 mm — optional
• TOOL HOLDER 6-18 mm — optional
• SPECIAL VOLTAGE — optional

Technical specifications

• Operations: preassembly of DIN2353 rings; 37° flaring with additional flaring block
• Tube capacity (flaring): 6 - 18 x 2 mm
• Tube capacity (preassembly): 6 - 18 x 2 mm
• Standards: UNI ISO 8434-2, DIN 3949
• Materials: AISI 316 Ti, ST 37.4
• Weight (without oil): 132 kg
• Dimensions (L x W x H): 808 x 798 x 1075 mm
• Standard voltage: 400 V 50 Hz 3-phase
• Motor power: 0.75 kW (1 Hp)
• Oil capacity (not included): 13 L
• Control: electronic touch-screen with parameter input and recipe saving
• Design note: cylinder not integrated into main structure (patent pending) to increase working space and allow processing of tubes with very short flat ends
