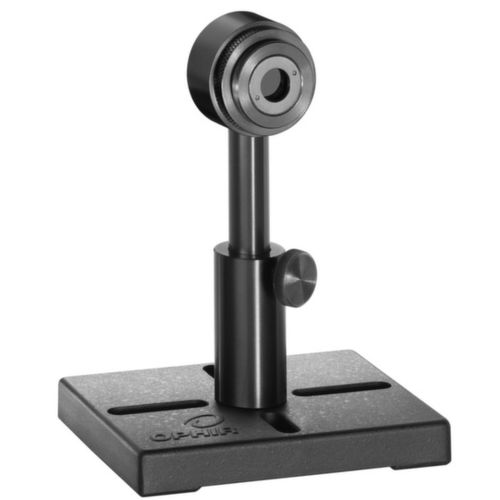

Photodiode laser energy sensor PD300R Series

The PD300R is a general purpose circular geometry photodiode laser measurement sensor with a 10mm aperture and removable filter. Without filter, its spectral range is 350 - 1100nm and its power measuring range is 500pW - 30mW. With filter the spectral range is 430nm - 1100nm and the power range is 200µW - 300mW. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface. Specification perture: Ø10mm Spectral Range: 350-1100nm Power Range: 500pW-300mW Dimensions: Ø35 W x 24 D (mm) Max Pulse Energy: 20μJ Max Average Power Density: 10W/cm² Response Time: 0.2 s Max Average Power: 300mW Compliance: CE, China RoHS
