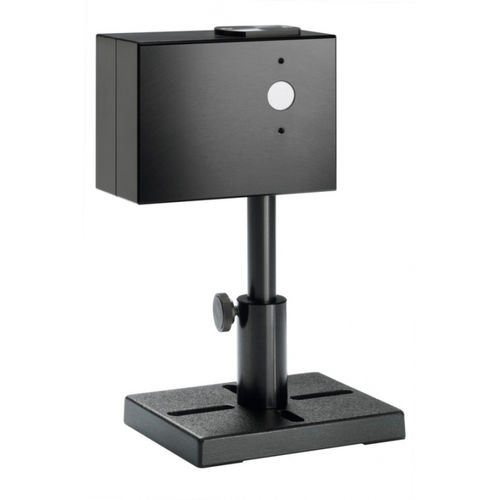

Reflectance measurement integrating sphere 3A-IS

The 3A-IS is an integrating sphere photodiode laser measurement sensor for divergent beams up to +/-40 degrees. It has a 12mm aperture and can measure from 1µW to 3W. It covers the spectral range from 0.35 to 1.1µm. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface. Specification Aperture: Ø12mm Spectral Range: 350-1100nm Power Range: 1µW-3W Dimensions: 68 L x 95 W x 46 D (mm) Max Pulse Energy: 500µJ Max Average Power Density: 0.2kW/cm² Response Time: 0.2 s Max Average Power: 3W Max Beam Divergence: N.A. Sensitivity to Beam Size: N.A. Compliance: CE, China RoHS
