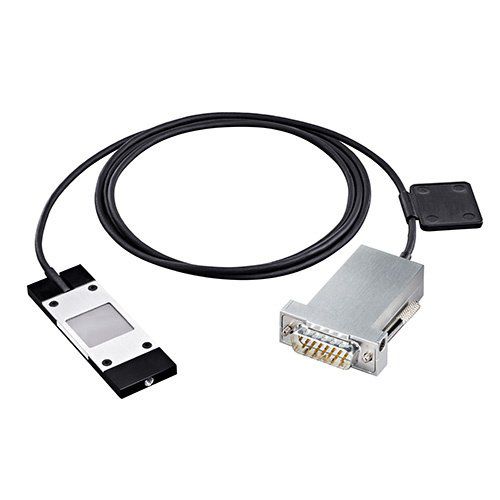

Calibration microscope slide PD300-MS

The PD300-MS is a Microscope Slide power sensor that measures the optical power at the sample plane in a microscopy setup. The silicon photodiode measures from 350nm to 1100nm at optical powers ranging from 3µW to 1W and is designed to be a microscopy power sensor that answers the needs of fluorescence excitation measurements. The sensor has a footprint of 76.0 mm x 25.2 mm matching that of a standard microscope slide. The sensing area is protected and cleanable sealed so that it can measure with in an immersion medium such as water or glycerol as well as in air. The PD300-MS microscope slide power meter comes with a 1.5 meter cable for connecting to a meter or PC interface. Specification Aperture: 18x18mm Spectral Range: 350-1100nm Power Range: 3µW-1W Dimensions: 76 L x 25 W x 2.5 D (mm) Max Pulse Energy: N.A Max Average Power Density: 20W/cm² Response Time: 0.2 s Max Average Power: 1W Compliance: CE, China RoHS
