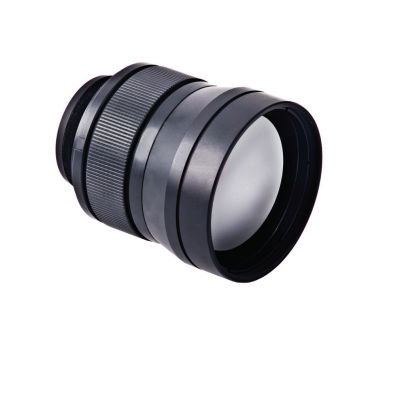

Fixed-focus camera objective 680318

fixed-focus camera objective
fixed-focus camera objective
Add to favorites
Compare this product


Characteristics

Type
fixed-focus
Focal length

75 mm (2.95 in)

Description

SupIR 75mm f/1.2, Athermalized Manual Focus Optical Focal Length: 75mm F/#: 1.2 Average Transmission (8-12µm): 86% Back Focal Length: 14.33mm in air Mechanical Focus Mechanism: Manual Depth of Field: 400m to infinity Focus Range: 5m to infinity Weight: 265gr Max. Dimensions: Ø68.4mm x 82.5mm Environmental Operating Temperature: -30°C to +70°C Storage Temperature: -30°C to +70°C Sealing: IP 67 front element only Configurations 680318-001: Hard Carbon

Catalogs

No catalogs are available for this product.

See all of Ophir Optronics‘s catalogs
