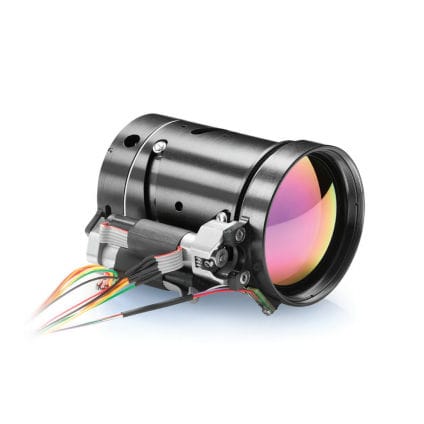

Zoom camera objective 680313
motorized

zoom camera objective
zoom camera objective
Add to favorites
Compare this product


Characteristics

Type
zoom
Other characteristics
motorized
Focal length

15 mm, 300 mm (0.59 in)

Description

SupIR 15-300mm f/5.5, Motorized Continuous Zoom Optical: WFOV: NFOV Focal Length: 15mm: 300mm F/#: 5.5 Cold Stop to FPA Distance: 19.7mm-19.1mm Cold Stop CA: Ø3.58mm Average Transmission (3.4-5.0µm): 84% (LRHC)/ 87% (HD) Back Focal Length: 25.33mm in air Distortion: <4%: <4% Minimum Focus Range: 5m: 50m Nuc (by defocus): Yes Mechanical Focus Mechanism: Motorized Focus Time (minimum range to ∞): ≤1 sec. Zoom Mechanism: Motorized Zoom Time (NFOV to WFOV): ≤5 sec. Weight: 500gr Max. Dimensions: Ø67mm x 93mm
