Trapezoidal belt KB VB seriesflatVpolyester
Add to favorites
Compare this product
Characteristics
- Type
- trapezoidal, flat, V
- Material
- polyester
- Other characteristics
- wrapped, flexible
- Length
Max.: 18,000 mm
(708.66 in)Min.: 1,200 mm
(47.24 in)- Temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)
Description

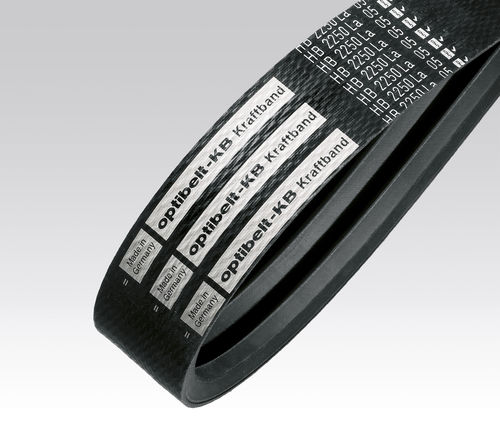

optibelt KB VB kraftbands consist of high-quality single V-belts which are joined together with a top surface. Depending on the application, up to five classic V-belts may be used per kraftband. In special cases, kraftbands with more than five V-belts can be supplied. If several kraftbands are used per drive, matched sets must be used.
optibelt KB VB kraftbands are used above all with extreme shock loads or large centre distances in combination with small diameter pulleys and with vertical shafts.
Advantages that speak for Optibelt
Single belt characteristics
V-flat drives
Electrically conductive
More flexible than wedge belts
Clutch option
High operational reliability
Polyester cord
Favourable running characteristics with regard to vibrations
